LIND LDC180 Direct-Connect Heavy-Duty Servo Electric Cylinder (Iron Barrel)

【Heavy-duty flagship: 50-ton precision thrust + anti-rotation positioning dual protection】

Product Overview

The Lind LDC180 series is a high-thrust servo electric cylinder designed for ultra-heavy industrial applications. It adopts a large-diameter 217mm thickened iron cylinder barrel, which is robust and extremely rigid. The maximum thrust load is up to 50 tons (500kN). The built-in anti-rotation rod ensures smooth operation, and the proximity switch enables precise positioning. It can perfectly replace traditional hydraulic cylinders and provide a cleaner, more efficient, precise and safer linear power solution.

Cylinder block material:

High-strength precision cast iron cylinder barrel, outer diameter φ217mm, heavy-duty integrated structure, excellent resistance to bending, torsion and impact, and no deformation under long-term heavy load.

Thrust:

Rated/maximum thrust of 50 tons (500,000N), meeting the requirements of extreme load conditions such as heavy press fitting, lifting, extrusion, and forging.

Transmission Core:

Built-in heavy-duty planetary roller screw / large lead ball screw (optional), combined with high-precision heavy-duty bearing assembly, resulting in high efficiency, long service life, low noise, and no crawling.

Anti-rotation and positioning configuration：

The built-in anti-rotation rod effectively prevents the piston rod from rotating, ensuring precise and error-free execution of actions, making it suitable for heavy-duty scenarios with high requirements for angle accuracy. Equipped with a proximity switch, it can achieve precise positioning and limit reminders of the piston rod stroke, improving the safety and automation of equipment operation and facilitating linkage with the control system.

Control Precision:

Servo closed-loop control with repeatability of ±0.01mm and thrust control accuracy of ≤1%. Position, speed and thrust are all programmable and adjustable in closed loop. Proximity switches further improve positioning accuracy.

Protection level:

With IP65 high protection, it is dustproof and splashproof, suitable for harsh environments such as workshops, metallurgy, construction machinery, and outdoors. The anti-rotation rod and proximity switch are both sealed to ensure long-term stable operation.

Installation and adaptation:

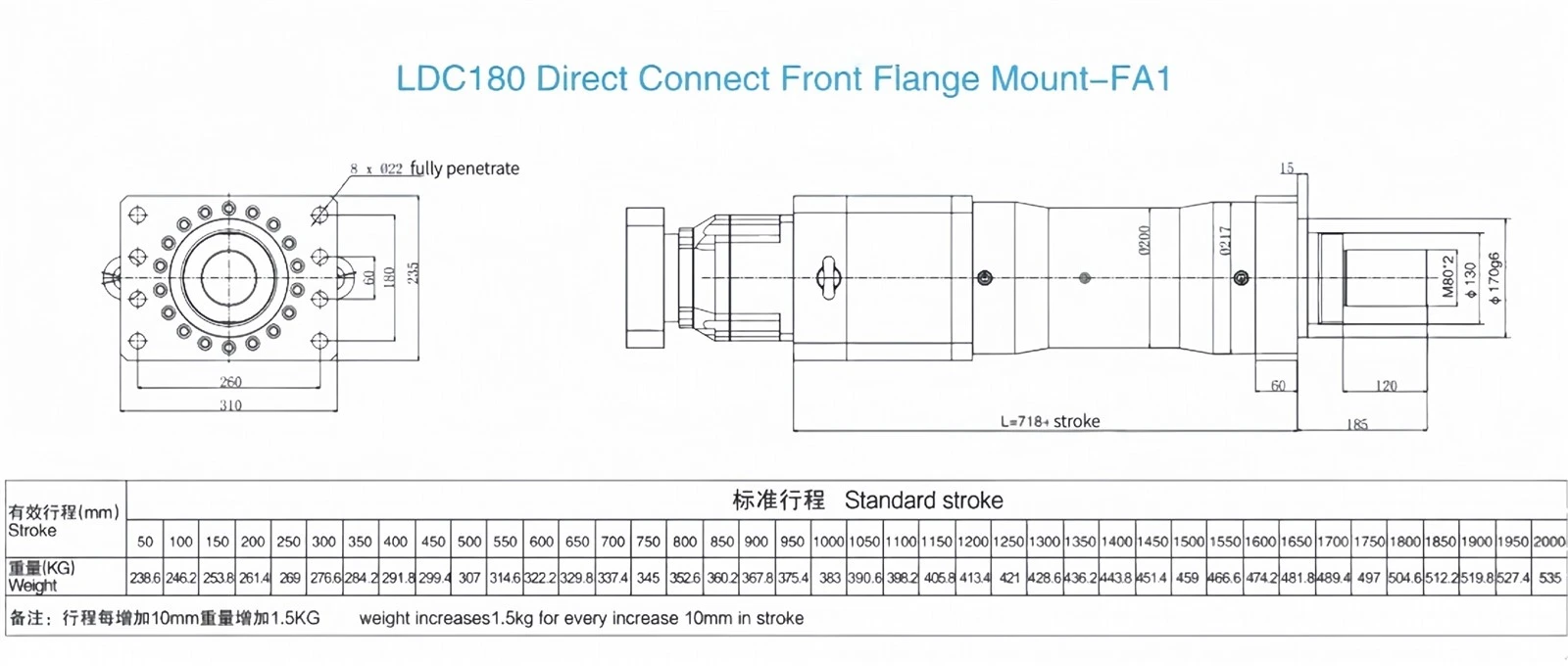

It supports various installation methods such as front flange, rear flange, trunnion, and joint, and is easy to integrate into presses, metallurgical equipment, test benches, and automated production lines. The anti-rotation rod and proximity switch can be flexibly adapted according to installation requirements.

50T pure electric heavy-duty:

Say goodbye to hydraulic stations, no leaks, no pollution, energy consumption is reduced by 40%+ compared to hydraulic systems, faster response, more stable control, and simpler maintenance.

Large diameter iron cylinder rigidity:

φ217mm thickened steel cylinder, load capacity several times higher than aluminum alloy cylinders. Excellent stability in long-stroke and eccentric load conditions, eliminating vibration and deformation.

Anti-spinning + positioning dual protection:

The built-in anti-rotation rod eliminates piston rod rotation deviation, and the proximity switch enables precise limit and positioning. This dual configuration significantly improves the equipment's operating accuracy and safety, and reduces the cost of manual intervention.

High precision + long lifespan:

Key components have undergone millions of fatigue tests. Combined with a forced lubrication system, they operate stably and reliably under continuous heavy loads, with a lifespan far exceeding that of traditional hydraulic actuators. The anti-rotation rod and proximity switch are made of high-quality parts, making them suitable for long-term use under heavy load conditions.

Intelligent electronic control compatibility:

It supports PLC and bus communication (Profinet / EtherCAT / Modbus), can be connected to the Industrial Internet of Things, and proximity switch signals can be directly linked to the control system to realize remote monitoring, multi-cylinder synchronization, and force-position closed-loop control.

Typical applications

- Heavy-duty press-fitting/riveting equipment, forging machinery, metallurgical equipment

- Large testing machines, pressure testing benches, heavy-duty lifting platforms

- Automotive chassis/frame pressing, heavy-duty assembly of new energy batteries/structural components

- Port machinery, mining equipment, military special equipment, large-scale automated production lines

The transmission system directly affects efficiency, accuracy, and service life.

The LDC180 supports precision ball screw and planetary roller screw solutions to meet different heavy-duty requirements.

• Higher Mechanical Efficiency

Ball screw transmission reduces friction through rolling contact.

Compared with traditional lead screw systems, it provides:

①Higher transmission efficiency

②Lower energy loss

③Reduced heat generation

• Better Positioning Accuracy

Lower friction and improved transmission precision help maintain stable positioning performance.

This is especially important for:

①Heavy press applications

②Precision testing equipment

③Automated assembly systems

• Longer Operating Life

Reduced friction minimizes mechanical wear.

Combined with heavy-duty bearings and lubrication systems, the actuator maintains reliable performance during long-term operation.

The LDC180 adopts a direct-connect transmission design between motor and actuator mechanism.

• Higher Rigidity

The direct connection reduces unnecessary transmission components.

This improves structural rigidity and minimizes mechanical clearance.

• Faster Response

The simplified transmission path improves:

①Acceleration response

②Motion synchronization

③Control accuracy

Suitable for automated systems requiring fast and precise movement.

• Reduced Maintenance Points

Fewer mechanical transmission parts reduce potential failure sources and simplify maintenance.

Heavy-duty applications require not only high force but also stable movement control.

The LDC180 integrates an anti-rotation rod structure to improve actuator reliability.

• Prevents Rod Rotation

The anti-rotation mechanism maintains piston rod alignment during operation.

This improves:

①Angular accuracy

②Load stability

③Equipment reliability

• Supports Precision Automation

Combined with proximity switches, the structure enables accurate positioning and safe machine operation.

Market Authority

Years of field-proven expertise have made Lingde the preferred partner for thousands of leading industrial enterprises.

Global Network

Leveraging extensive application data to provide international clients with stable, zero-lag technical support worldwide.

Tailored Solutions

Deep R&D capabilities allow for precise customization of stroke and mounting to meet unique mechanical constraints.

Rapid Fulfillment

Standardized manufacturing and optimized supply chains ensure precision while delivering industry-leading turnaround times.

Q1: Can these replace hydraulic/pneumatic systems?

A: Yes. Electric actuation offers higher precision and lower maintenance with compatible mounting interfaces.

Q2: What is the lead time?

A: Standard models are in stock. Custom orders are typically fulfilled 20% faster than the industry average.

Q3: How is international after-sales handled?

A: Through real-time video guidance and multilingual manuals, ensuring immediate technical response globally.
