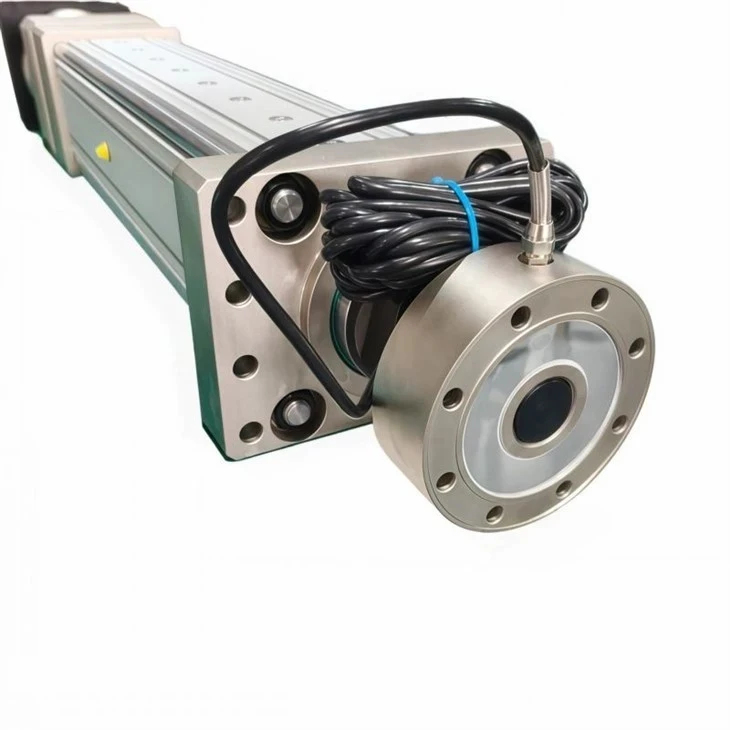

Industrial High-Precision Hollow Shaft Electric Cylinder / Servo Actuator (Integrated Compact Design)
The LIND-WORLD industrial hollow shaft electric cylinder perfectly integrates cutting-edge servo drive technology with an innovative hollow mechanical architecture. Its unique center through-hole design allows complex cable harnesses, pneumatic tubes, laser beams, or coaxial rotary shafts to pass directly through the actuator's core.
This entirely eliminates the industry-wide pain point of external dangling cables wearing out or breaking during high-speed reciprocal movements, while dramatically simplifying spatial wiring layouts. Built with ground-grade screws and extended-life sealing systems, it guarantees exceptional stability and an ultra-long operational lifespan even in the harshest industrial automation environments.
Four Core Technological Advantages
Innovative Hollow Core Architecture: A continuous center through-hole (ID available from 15mm to 50mm) provides an internal pathway for pneumatics, slip rings, cabling, or optics, completely eliminating external tangling and mechanical interference.
Coaxial Integrated Compact Structure: The hollow rotor motor and cylinder body feature a coaxial integrated design, eliminating traditional couplings and motor mounts. This reduces the overall installation envelope by up to 30% compared to conventional actuators.
Micron-Level High Precision & Fast Response: Achieves a repeatability of up to ±0.01mm and supports high-speed dynamic responses up to 500mm/s across the full stroke, meeting the stringent requirements of precision manufacturing.
Industrial Durability & High Protection Rating: Utilizing heavy-duty aviation-grade aluminum alloy or stainless steel housing, combined with custom internal seals engineered for hollow routing, it offers up to IP65 protection, effectively blocking dust entry and preventing internal grease leakage.
Rigorous Technical Specifications
|
Technical Parameter |
Standard Range / Specifications |
Notes |
|
Hollow Inside Diameter (ID) |
15mm, 20mm, 25mm, 32mm, 40mm, 50mm |
Custom ID available upon request |
|
Maximum Rated Thrust |
1kN - 50kN (Approx. 100kg - 5000kg) |
Supports high dynamic overload |
|
Effective Stroke Length |
50mm - 800mm |
Customizable in 50mm increments |
|
Maximum Linear Speed |
Up to 500mm/s |
Depending on screw lead and motor RPM |
|
Repeatability |
±0.01mm (Ground) / ±0.02mm (Rolled) |
Micron-level precision control |
|
Drive Screw Type |
Ball Screw or Planetary Roller Screw |
Optional based on load and cycle frequency |
|
Motor Compatibility |
Yaskawa, Panasonic, Mitsubishi, Siemens, Delta, etc. |
Custom mounting flanges provided |
|
IP Protection Rating |
IP54 (Standard) / IP65 (Optional High-Protection) |
Suitable for dusty or splash environments |
|
Operating Temperature |
-20°C to +60°C |
Sub-zero or high-temp versions customizable |
Advanced Technical Breakdown
High-Rigidity Hollow Rotor Motor: Utilizes custom-engineered hollow rotor motors with high-density winding optimization, maximizing the inside diameter without sacrificing torque density or dynamic responsiveness.
Ground / Precision Rolled Screws: Available with C3 or C5 grade ground ball screws or heavy-duty planetary roller screws. The surface undergoes specialized hardening and carburizing treatment, increasing wear resistance by 30%.
Advanced Sealing & Lubrication: Features a proprietary internal seal designed specifically for hollow-shaft routing. It effectively prevents internal grease from leaking into the cable channel while blocking external dust, enabling maintenance-free long-term operation.
Application Industries
Semiconductor & Electronics Manufacturing
Wafer vacuum handling manipulators, fully automated high-speed chip mounters, and multi-axis precision PCB test rigs.
Laser Processing & Optical Systems
Coaxial vertical driving for laser marking and cutting heads, and center optical path alignment for inspection instruments.
Medical & Laboratory Automation
Automated high-precision liquid dispensing systems, high-speed blood centrifuges, and precision displacement stages for medical imaging equipment.
Advanced Robotics & Intelligent Grippers
Hollow rotary joints for multi-axis industrial robots, and servo-driven electric rotary grippers with internal pneumatic/electric routing.
Quality Assurance & Global Lifecycle Services
Rigorous Quality Control & Traceability: We strictly implement the ISO 9001:2015 quality management system. Every single hollow shaft actuator must undergo 100% full-load simulated dynamic testing before dispatch. A fully traceable precision and performance report is shipped with the product, ensuring zero defects reach the global market.
12-Month Global Warranty & 24/7 Technical Support: We provide a comprehensive 1-year warranty from the date of shipment. Our senior application engineering team offers 24/7 global technical response, delivering cross-border remote guidance for installation and commissioning via video conferences.
Fast Logistics & Wear Parts Guarantee: Products are securely packed in heavy-duty, fumigation-free wooden cases compliant with international shipping standards. To minimize your machinery's downtime risk, we maintain a rolling inventory of core wear parts (e.g., seals, sliders) for immediate worldwide express dispatch via DHL/FedEx/UPS.
FAQ
Q: Can I pair the LIND-WORLD hollow shaft electric cylinder with my existing Siemens or Rockwell servo motors?
A: Yes, absolutely. We provide custom motor adapter flanges and inline couplings based on your motor's specific frame size, shaft diameter, and pilot diameter. Simply send us your motor's 2D drawing or brand model, and our engineers will handle the compatibility design.
Q: What is the maximum continuous duty cycle (ED rating) for your hollow shaft actuators?
A: For models equipped with premium ball screws, they support a 100% duty cycle under rated loads. For planetary roller screw configurations designed for extreme thrust, they can operate continuously under high-frequency conditions without degradation, provided the recommended lubrication intervals are maintained.
Q: How do you prevent internal grease from leaking into the hollow through-hole and damaging our optical cables or air lines?
A: LIND-WORLD utilizes a dual-lip rotary sealing system lined with specialized fluororubber (FKM) gaskets along the entire inner sleeve. This creates a completely isolated dry-channel for your cabling, ensuring that the heavy-duty grease remains restricted entirely to the screw and bearings.
