Custom Electric Cylinder Solutions – Precision Actuation for Your Automation Systems
We provide high-performance custom electric cylinder solutions tailored to your exact application requirements. With over a decade of actuation expertise, we offer personalized engineering for stroke, thrust, speed, mounting structures, and control system integration. Our solutions are widely trusted in industrial automation, automotive manufacturing, intelligent robotics, precision testing, and heavy-duty actuation systems.
Product Overview

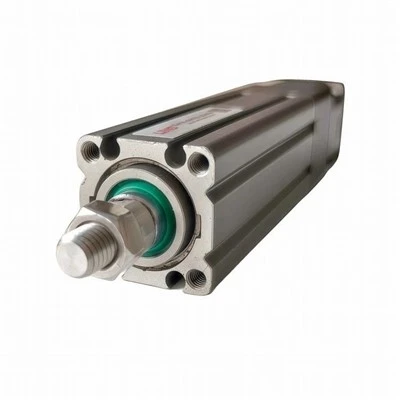

A custom electric cylinder is a high-precision linear actuator that integrates a servo motor with a ball screw or planetary roller screw mechanism. Serving as a next-generation alternative to hydraulic and pneumatic cylinders, it offers unmatched closed-loop control accuracy, superior energy efficiency, and a 100% oil-free, clean operating environment.
High-precision position control: Closed-loop control with seamless synchronization.
Programmable motion profiles: Flexible adjustment of speed, force, and position.
Low maintenance cost: Eliminates aging valves and seal leakages.
Oil-free & Eco-friendly: Ideal for cleanrooms and medical environments.
High repeat positioning accuracy: Ensures consistency over millions of cycles.
Why Electric? (Fluid Power Comparison)
|
Feature |
Custom Electric Cylinder |
Traditional Hydraulic |
Traditional Pneumatic |
|
Control Precision |
Ultra-High ($\pm0.005\text{mm}$); Closed-loop control of position, speed & force |
Low; Heavily affected by oil temperature & valve delay |
Very Low; Generally limited to simple 2-position travel |
|
Energy Efficiency |
90%+ High Efficiency; Powers up only during active movement |
30%-50% Low Efficiency; Pump unit must run continuously |
10%-20% Lowest Efficiency; Severe air leakage losses |
|
Maintenance |
Zero Maintenance, Eco-Friendly; No oil leaks, ideal for cleanrooms |
High Maintenance; Frequent oil leaks, filter & fluid changes |
High Noise; Exhaust air carries oil mist, polluting environments |
|
Footprint |
Compact & Clean; Integrated motor/cylinder, no external power unit |
Bulky; Requires messy hydraulic power units (HPU) & piping |
Rigid Layout; Dependent on factory air compressors & lines |
Technical Specification Matrix
|
Technical Parameter |
Standard Range |
Customization Limits / Options |
|
Rated Thrust Force |
500 N - 200,000 N (20 Tons) |
Up to 1,000,000 N (100 Tons) |
|
Max Speed |
100 mm/s - 1000 mm/s |
High-speed customization up to 2000 mm/s |
|
Stroke Range |
50 mm - 2000 mm |
Extended stroke up to 4000 mm |
|
Repeatability |
$\pm0.02\text{mm}$ (Ground Ball Screw) |
Up to $\pm0.005\text{mm}$ (Planetary Roller Screw) |
|
Duty Cycle |
50% - 80% |
Up to 100% continuous duty cycle |
We offer full-range, deep customization to meet specific and demanding industrial application requirements. Our engineering team responds within 24 hours to match your exact technical targets:
Stroke Customization: Ranges from 10mm to 3000mm+, catering to micro-positioning or extra-long reach requirements.
Thrust Force Customization: Capacity spanning from 50kg to 100+ tons, optimized for delicate components assembly or heavy-duty pressing.
Speed & Acceleration: Velocities and acceleration profiles can be fully optimized based on your dynamic cycling needs.
Mounting Options: Supports front/rear flange, trunnion, clevis, and bespoke mounting interfaces for flexible kinematics.
Control System Integration
Fully compatible with global PLC/servo brands and major industrial networks (EtherCAT, PROFINET, CANopen, EtherNet/IP, etc.).
Protection Level
Optional IP65, IP67, up to IP69K ratings, featuring dustproof, waterproof, stainless steel, and anti-corrosion designs.
Extreme Environment Adaptation
Specialized configurations for Cleanroom (Class 100), Explosion-proof (ATEX certified), Vacuum environments, High-temperature (up to 150°C), and Ultra-low temperature (down to -40°C).
High-rigidity aircraft-grade aluminum alloy or high-strength steel housings with superior anti-torsion capability.
Precision ground ball screws (up to C3/C5 accuracy grade) or heavy-duty planetary roller screws.
Available in both parallel (foldback) and inline motor configurations.
Supports multi-turn absolute encoder feedback, linear scales, and integrated safety brakes.
Fully sealed, long-life lubrication design minimizing routine maintenance.
Industrial Applications
Industrial Automation Systems: Multi-axis gantry systems, automatic loading/unloading.
Automotive Manufacturing & Assembly: Body-in-white welding, servo pressing, and parts inspection.
Metal Forming & Press Machines: Precision stamping, bending, and extrusion equipment.
Robotics & Intelligent Equipment: 7th-axis linear tracks, heavy-duty manipulator joints.
Testing & Simulation Systems: Vehicle fatigue lifecycle testing, multi-axis test rigs.
Aerospace Simulation Platforms: 6-DOF flight simulators, hydraulic-to-electric retrofits.
Packaging & Logistics Equipment: High-speed sorting, palletizing, and heavy-duty lifters.
New Energy & Battery Production Lines: Battery cell stacking, calendering, and tab welding lines.
Requirement Evaluation & Load Calculation —— Submit your speed, thrust, stroke, and duty cycle. Our engineering team will verify the mechanics and expected L10 lifetime within 24 hours.
3D Modeling & CAD Confirmation —— We provide custom 3D CAD models (STEP/IGS formats) to ensure seamless mechanical integration with your machine design before production.
Precision Manufacturing & 100% Factory Testing —— Built strictly under ISO9001. Every cylinder undergoes rated-load performance testing and positioning accuracy calibration via laser interferometers.
Global Logistics & Lifecycle Support —— Export-ready non-fumigation wooden packaging. We provide remote commissioning assistance and an 18-month extended warranty.
Fully certified under the ISO 9001: 2015 Quality Management System.
Core components (screws, bearings, belts) are sourced from world-class Tier-1 brands to ensure supreme supply chain stability.
100% Factory Inspection: Includes dynamic accuracy testing, backlash verification, and load-fatigue testing.
All product lines compliant with CE / RoHS standards for frictionless import into European and American markets.
Full industrial-grade reliability and traceability test reports available upon request.
Frequently Asked Questions
As one of the leading custom electric cylinders suppliers in China, we warmly welcome you to buy high quality custom electric cylinders for sale here from our factory. For customized service, contact us now.
