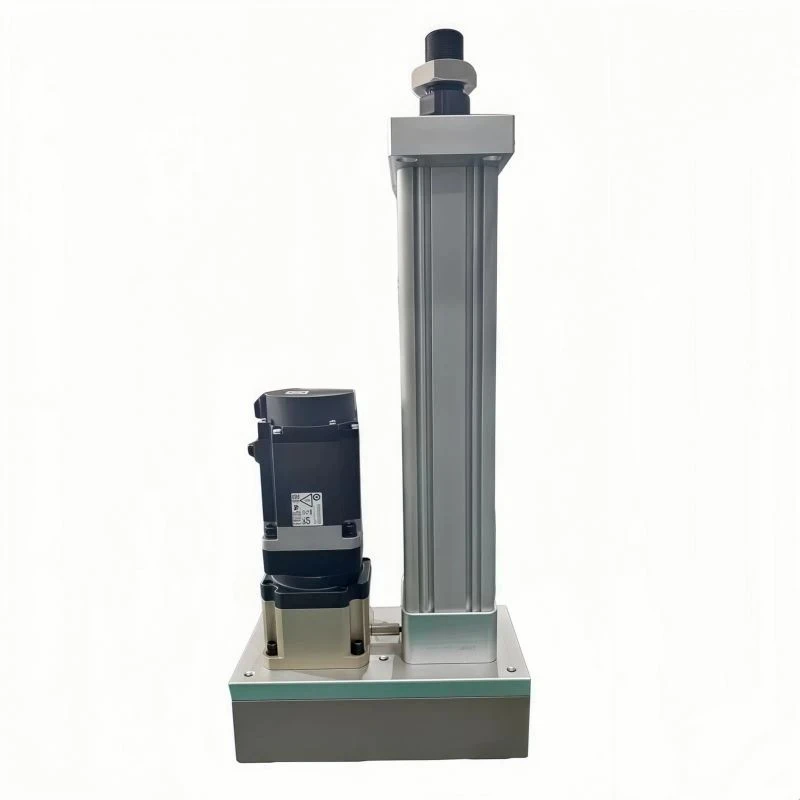

Custom Short Stroke Electric Cylinder | Precision Linear Actuator High-Frequency & Compact Linear Motion Control
Engineered for space-critical, high-frequency, and micron-level precision industrial automation. LIND provides 100% tailored OEM/ODM solutions engineered precisely to match your 2D/3D design specifications.
Stroke Length
10mm - 100mm (Fully Customizable)
Repeatability
Up to +/-0.01 mm
Compact Footprint
Ideal high-performance replacement for traditional pneumatic cylinders.
Motor Flexibility
Seamlessly compatible with leading global servo and stepper motor brands.
Product Overview & Core Advantages
LIND Custom Short Stroke Electric Cylinders redefine precise linear motion where structural space is at a premium. By transitioning from traditional pneumatic systems to electric actuation, you completely eliminate air leakage risks, minimize workplace acoustic noise, and achieve multi-position programmability.
Built with premium internal components and a robust structural envelope, our short-stroke actuators ensure your automated machinery achieves maximum throughput with zero compromise on accuracy
Micron-Level Position Control
Equipped with high-precision ground ball screws or customized lead screws to guarantee sub-millimeter absolute accuracy and zero backlash.
High-Frequency & Rapid Response
Mechanically optimized for aggressive duty cycles, capable of sustained high-velocity acceleration and deceleration without thermal build-up.
Space-Saving Architecture
Engineered with an ultra-compact cylinder body and flexible motor mounting orientations (parallel or inline) to seamlessly fit cramped machine frames.
Industrial-Grade Durability
Advanced internal lubrication channels and heavy-duty dual-lip sealing technology protect internal mechanics from fine dust, liquid ingress, and high friction.
Technical Specifications
|
Technical Parameter |
Standard Range |
Customizable Options |
|
Stroke Length |
10 mm - 100 mm |
Fully tailored up to 150 mm |
|
Rated Thrust |
50 N - 5000 N |
Tailored to heavy-load requirements |
|
Max Linear Speed |
Up to 500 mm/s |
Optimized for high/low speed curves |
|
Repeatability |
+/-0.01 mm to +/-0.02 mm |
Higher precision available upon request |
|
Internal Screw Type |
Precision Ball Screw / Lead Screw |
Grinding or rolling grade selection |
|
Motor Mounting Style |
Inline (Direct) / Parallel (Foldback) |
Custom adapter brackets to fit any motor |
|
IP Protection Rating |
IP54 / IP65 |
Up to IP67 for extreme environments |
|
Cylinder Material |
Hard-Anodized Aluminum Alloy |
Full Stainless Steel (SUS304/316) available |
Mechanical Anatomy & Premium Components
High-Rigidity Outer Housing
Hard-anodized aluminum alloy body guarantees zero structural distortion under maximum axial load while providing rapid thermal dissipation.
Built-In Anti-Rotation Guide
Integrated internal guiding mechanism prevents the piston rod from twisting, maintaining angular alignment without the need for external mechanical guide rails.
Imported Heavy-Duty Bearings
Premium Japanese angular contact bearings absorb sustained high-speed axial shocks, significantly extending the cylinder's lifecycle.
Zero-Backlash Flexible Couplings
High-torque jaw couplings ensure flawless, direct synchronization between the driving motor and the internal mechanical screw.
Advanced Double-Lip Sealing System
Specialized industrial wipers shield the internal components from fine metallic dust, cutting fluids, oil mist, and environmental debris.
Flexible Engineering Customization
We specialize in solving complex engineering constraints. Our mechanical design department can adapt any aspect of the actuator to seamlessly integrate into your pre-existing setup:
Mechanical Interface Customization
Tailored rod ends (male/female threads, clevis, spherical eye joints) and flexible cylinder body mounting configurations (flange, trunnion, or foot mounts).
Seamless Motor Integration
We custom-engineer motor adapter plates and coupling sleeves to match your specified motor brand. Whether you use Servo, Stepper, or BLDC motors, we ensure a plug-and-play fit.
Specialized Environmental Adaptations
Cleanroom-certified (Class 100) configurations utilizing vacuum-grade grease and specialized venting, or full stainless steel builds for corrosive, washdown, and food-grade environments.
Quality Assurance
At LIND, reliability is mathematically verified, never assumed. Every single custom short-stroke cylinder undergoes rigorous validation protocols prior to export packaging:
Laser Interferometer Accuracy Testing
We verify the pitch error, backlash, and repeatability of every single actuator using precision laser interferometers to guarantee compliance with your +/-0.01 mm engineering requirements.
Dynamic Load & Lifetime Simulation
Actuators are benchmarked on custom factory test rigs under your exact load configurations to ensure zero premature component wear.
Traceable Performance Certification
Every shipment includes a signed Factory Inspection & Performance Certificate mapping out the exact testing data of your specific product serial number.
Target Industry Applications
Semiconductor & Electronic Assembly
High-speed, micro-precision pick-and-place, probe testing, chip packaging, and PCB indexing.
Medical Automation & Laboratory Devices
Precision liquid handling, automated syringe pumps, tube capping/decapping, and optical lens adjustment.
Automotive Manufacturing Systems
Small component clamping, precise riveting, press-fitting, and sensor positioning.
Smart Packaging & Labeling
High-frequency cutting mechanisms, automated stamping, and high-speed sorting gate systems.
FAQ
Q: Can you custom manufacture directly from our 3D STEP drawings?
A: Yes, absolutely. Over 80% of our production involves fully customized engineering projects. You can upload your .STEP, .IGS, or .DWG files via our inquiry form. Our engineering department will evaluate the mechanical compatibility and send you a technical confirmation report within 48 hours.
Q: Can we purchase the actuator without the motor included?
A: Yes. We can supply the short stroke electric cylinder as a pure mechanical unit. It will arrive fully equipped with a custom-machined flange plate and coupling designed specifically to fit your locally sourced motor.
Q: What is your Minimum Order Quantity (MOQ) for customized cylinders?
A: Our MOQ is 1 piece. We actively support B2B clients and OEM engineering teams during the prototyping, R&D, and machine-trial stages before transitioning into serial volume production.
Q: What is your standard export warranty and technical support structure?
A: All LIND cylinders come backed by a 12-month international warranty. We provide lifetime remote engineering support via email, video consultations, and comprehensive CAD/technical documentation to ensure seamless system integration into your machinery.
