High-Precision Servo Press Fitting System: Intelligent Smart Assembly Solutions
Precision Control
+/-0.01 mm displacement repeatability and +/-1% F.S. force accuracy.
100% Traceability
Real-time force-displacement curve monitoring with automatic MES data export.
Eco-Friendly
Up to 70% energy savings compared to traditional hydraulic systems.
Product Overview

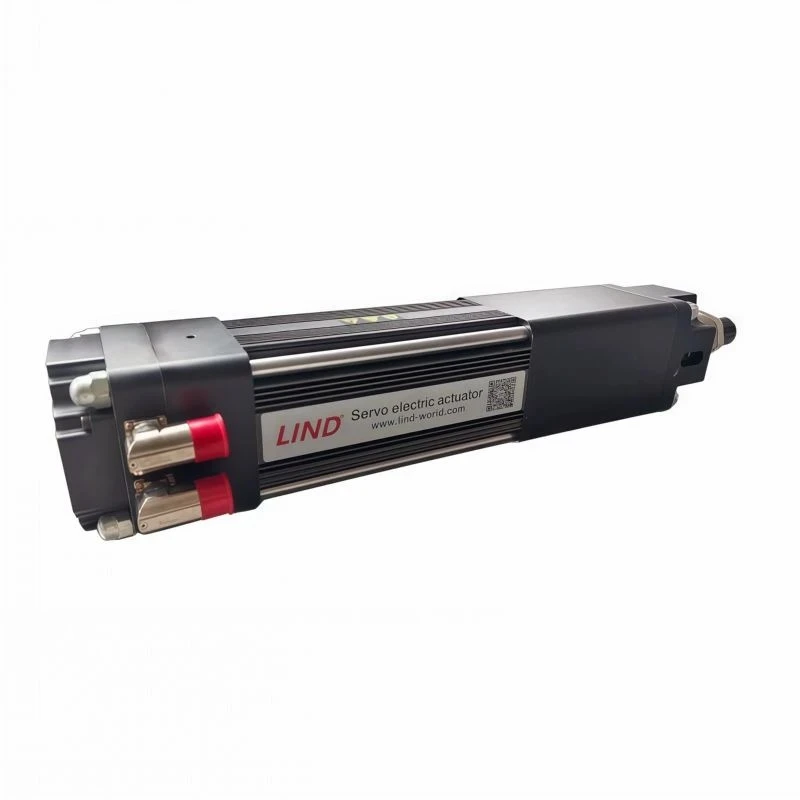

LIND's Servo Press Fitting System seamlessly integrates premium electric cylinders, precise servo motors, and intelligent proprietary evaluation software. Engineered to replace obsolete hydraulic and pneumatic presses, our system offers unmatched energy efficiency, fully programmable motion profiles, and flawless data tracking.
Whether integrated into a fully automated automotive assembly line or operated as a standalone benchtop workstation in an electronics cleanroom, LIND delivers the ultimate reliability for high-end global manufacturing.
Core Advantages
Engineered for Zero-Defect Manufacturing
Micron-Level Precision
Equipped with high-resolution encoders and premium driving elements, achieving micron-level depth control to secure delicate assembly tasks flawlessly.
Advanced Data Traceability
Automatically logs pressing data, final values, and process curves. Supports seamless export via Ethernet/USB and integrates plug-and-play with your factory MES (Manufacturing Execution System).
Multiple Programmable Modes
Switch effortlessly between multiple press-fitting modes via the HMI: Constant Speed, Constant Force, Stop at Defined Position, and Stop at Defined Load.
Zero Contamination & Low Noise
Eliminates the risks of oil leaks, hydraulic pressure drops, and high ambient noise. Perfect for cleanrooms and high-standard environments.
Technical Specifications
|
Item |
Specification |
|
Nominal Force Range |
0.5 kN – 200 kN (customizable upon request) |
|
Stroke Length |
50 mm – 500 mm |
|
Max Pressing Speed |
Up to 300 mm/s |
|
Displacement Repeatability |
±0.01 mm |
|
Force Control Accuracy |
±1% F.S. (full scale) |
|
Communication Interface |
PROFINET, EtherCAT, Modbus TCP, Ethernet/IP |
|
Driving Element |
High-rigidity precision ball screw / roller screw |
|
Input Power Supply |
AC 220V / AC 380V, 50/60 Hz |
Proven Performance Across High-Demanding Industries
Automotive Industry
Engine valves, steering gear assembly, bushing press-fitting, chassis components, and EV battery module assembly.
Electronics & Electrical
High-density PCB board press-fitting, smartphone/tablet assembly, micro-motor bearings, and precision connectors.
Precision Machinery
High-load bearing insertions, gear pump assembly, medical device components, and automated valve calibration.
Why Global Buyers Choose LIND
Full Customization: Tailored strokes, custom force ranges, specialized mounting fixtures, and software UI adjustments based on your engineering drawings.
Global Certifications: Fully compliant with CE Machinery Directive 2006/42/EC and RoHS standards.
Secure Export Packaging: Shipped in heavy-duty, IPPC-certified fumigated wooden cases to prevent damage during sea or air transit.
24/7 Engineering Support: Remote online technical support, PLC debugging guidance, and English-speaking application engineers ready to assist.
Case Study: Automotive Bushing Assembly Line Integration
The Client: A global Tier-1 automotive components manufacturer supplying major EV brands.
The Challenge: The client required a system capable of handling high-volume bushing insertions with a strict +/-0.02 mm final depth tolerance and 100% cloud data logging for end-to-end liability tracking.
The Solution: Implementation of LIND's 50 kN Servo Press Fitting System fully integrated via EtherCAT.
The Result: Achieved a 0% defect escape rate over 1 million continuous cycles; overall production cycle time was reduced by 15%.
FAQ
Q: Can LIND's software interface with our existing plant MES?
A: Yes. LIND's control system supports all major industrial communication networks (Profinet, EtherCAT, Ethernet/IP) and provides structured data outputs via TCP/IP or database integration to connect directly to your factory MES.
Q: Do you offer customized press profiles and mechanical fixtures?
A: Absolutely. As a direct manufacturer, LIND provides complete customization, including specialized electric cylinder configurations, custom frame rigidities, and custom software interfaces designed around your specific parts.
Q: What is the average lead time for a 50 kN standard system?
A: For standard configurations, our average manufacturing and testing lead time is 3-4 weeks. Custom frames or specialized stroke lengths typically take 4-6 weeks, excluding ocean or air transit times.
