High-Precision Four-Post Servo Press Machine | Intelligent Electric Assembly Press
Precision Control: Closed-loop monitoring enables position accuracy up to ±0.01 mm and force control within ±1% F.S.
Heavy-Duty Four-Post Rigidity: Symmetrically engineered structure ensures minimal deflection and perfect parallelism under maximum loads.
Powered by LIND-WORLD Actuators: Driven by our proprietary, industrial-grade heavy-duty electric cylinders for a 100% continuous duty cycle.
Industry 4.0 IoT Integration: Real-time Force vs. Displacement graphing with instant data logging and export via Ethernet/USB for seamless MES connectivity.
Product Overview
The LIND-WORLD Four-Post Servo Press Machine is a premium, eco-friendly assembly solution engineered for modern smart factories. By eliminating the oil leaks, high ambient noise, and massive energy consumption inherent in traditional hydraulic systems, this all-electric machine offers fully programmable, micrometer-level control over press speed, ram position, and final clamping force.
Backed by our foundational R&D expertise in High-Performance Electric Cylinders, we control product quality directly from the raw component level. This vertical integration allows us to deliver unmatched equipment stability, prolonged tooling lifespans, and a significantly lower Total Cost of Ownership (TCO) for global B2B clients.
Technical Specifications
|
Specification |
Metric Units (Standard) |
Imperial Units (US Standard) |
Customizable Range |
|
Nominal Force |
10 kN – 500 kN (1–50 tons) |
2,248 – 112,400 lbf |
Up to 1,000 kN available |
|
Stroke Range |
100 – 500 mm |
3.93 – 19.68 in |
Extended stroke available on request |
|
Max. Operating Speed |
Up to 200 mm/s |
Up to 7.87 in/s |
Optimized per application |
|
Position Repeatability |
±0.01 mm |
±0.0004 in |
High-precision linear scale optional |
|
Force Control Accuracy |
±1% F.S. (full scale) |
±1% F.S. |
High-resolution inline load cell optional |
|
Daylight (Open Height) |
400 – 800 mm |
15.74 – 31.49 in |
Column height customizable |
|
Worktable Dimensions |
e.g. 500 × 400 mm |
e.g. 19.68 × 15.74 in |
Tailored T-slots, holes & cutouts |
|
Power Supply |
3-phase 380V, 50/60 Hz |
3-phase 220V / 480V |
Adapted to regional grids |
Premium Component Configuration
To ensure 24/7 continuous operation in rigorous industrial environments, LIND-WORLD partners exclusively with global tier-1 component manufacturers:

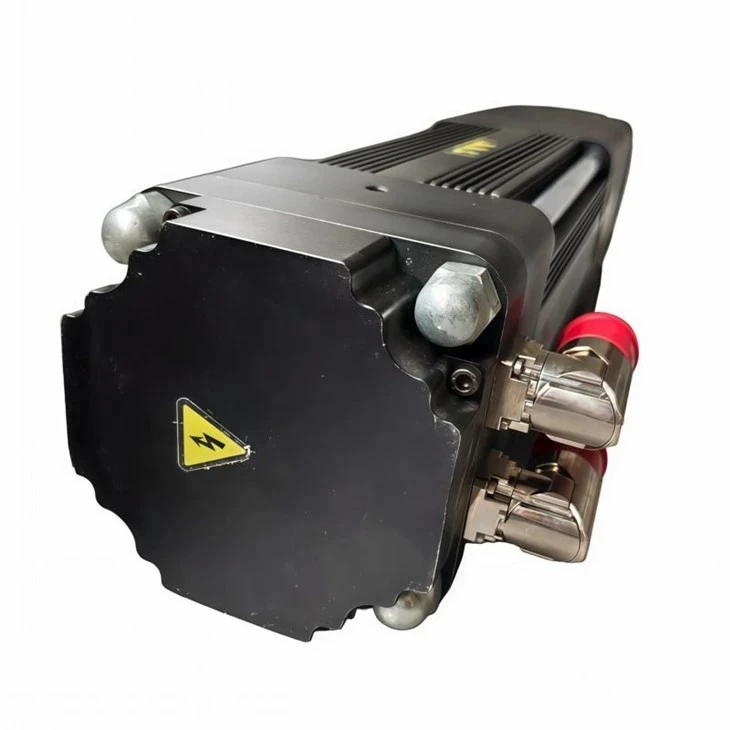

Core Linear Actuator
LIND-WORLD Heavy-Duty Electric Cylinder (equipped with High-Precision Planetary Ball Screws).
Servo Drive System
YASKAWA (Japan), Panasonic (Japan), or Delta (Taiwan) for ultra-fast dynamic response.
Main Control PLC
Siemens S7 Series (Germany) or Mitsubishi (Japan) for failsafe logic computing.
Pneumatics & Safety
SMC (Japan) pneumatic elements paired with SICK (Germany) or Banner (USA) safety light curtains.
Target Industry Applications
Automotive & EV Components: Electric vehicle (EV) battery pack assembly, electric motor rotor/stator press-fitting, steering knuckles, bushing insertions, and precision bearing seat assembly.
Electronics & 3C Hardware: High-density PCB board connector press-fitting, smartphone metal mid-frame calibration, micro-switches, and automated relay assembly.
Precision Machinery & Appliances: Gear shafts, industrial hydraulic valves, HVAC compressor components, and heavy-duty home appliance hardware crimping.
Quality Control & Engineering Rigor
Ultrasonic Flaw Detection: Every thick-gauge steel plate utilized for the four-column framework undergoes ultrasonic testing to guarantee zero internal micro-cracks or material structural anomalies.
CNC Gantry Milling: The upper moving bolster and lower base worktables are processed via a high-precision CNC gantry milling center in a single setup to guarantee strict parallelism (< 0.03 mm).
72-Hour Continuous Endurance Run: Every finished press machine undergoes a rigorous 72-hour simulated full-load stress and cycling test before dispatch, including 100% calibration verification of all integrated sensors.
Frequently Asked Questions (FAQ)
Q: Can your four-post servo press machine be integrated into a fully automated production line?
A: Yes. Our system features standard open I/O interfaces and natively supports mainstream fieldbus protocols such as Modbus TCP, Profinet, and EtherCAT. It communicates seamlessly with industrial robots (FANUC, KUKA, ABB) and master line PLCs for automated loading, clamping, and unloading cycles.
Q: We require non-standard dimensions and specialized fixtures. Do you offer customization?
A: Absolutely. We house a dedicated, full-time mechanical and electrical engineering team. We can fully customize the daylight, physical stroke, and bed dimensions, as well as design custom pneumatic/hydraulic clamping fixtures or rotary index tables based on your part's 3D CAD models (STEP/IGS formats).
Q: How do you handle technical support and replacement parts for overseas clients?
A: Every machine is shipped with an English-language HMI, operating manual, and comprehensive electrical schematics. Our engineers provide 24/7 online remote support via video diagnostics. In the rare event that a component needs replacement, we dispatch parts via international express (DHL/FedEx/UPS) within 48 hours to minimize your downtime.
