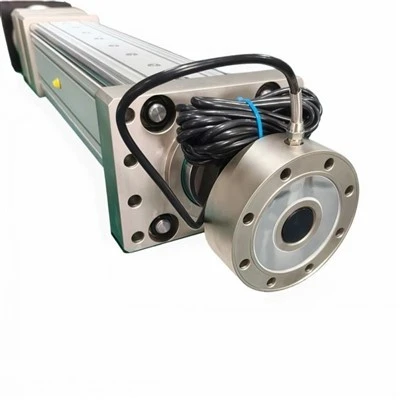

Hollow Shaft Electric Cylinders
Coaxial Rotary-Linear Actuators for Complex Multi-Axis Automation & Seamless Internal Routing
Hollow Shaft Electric Cylinders are next-generation precision linear actuators engineered with an integrated through-axis hollow bore. This coaxial architecture allows high-flex electrical cables, pneumatic hoses, vacuum lines, laser paths, or secondary drive shafts to pass directly through the center of the actuator, eliminating external mechanical interference.
By merging high-speed linear motion with a through-hole design, this series delivers unprecedented space savings and integration flexibility. It is the definitive solution for high-precision multi-axis automation, rotary-linear combined systems, and demanding industrial applications where traditional solid-shaft cylinders fail.
Operational Challenges We Solve
Eliminate Cable Fatigue & Failure
The hollow bore routes cables internally, completely preventing twisting, kinking, and snapping during complex 360° continuous rotary and linear motion.
Maximize Space Optimization
Replaces bulky external brackets and drag chains, combining linear and rotary mechanisms into one coaxial footprint—reducing your overall machine footprint by 25% to 40%.
Minimize Contamination Risks
Ideal for cleanroom environments such as semiconductor and medical lines. Enclosed internal routing locks friction particles inside, maintaining environment purity.
Technical Parameters & Standard Selection
Technical Note for Engineers:We utilize high-grade alloy steel ball screws (Precision Class C5 or C7) and integrated anti-rotation guide mechanisms to ensure maximum torsional rigidity. Custom backlash scaling ≤ 0.01 mm is available upon request.
|
Model Series |
Hollow Bore ID |
Rated Thrust |
Repeatability |
Max Speed |
Max Stroke |
|
HS-040 Series |
Ø12 mm |
200 N |
≤ 0.01 mm |
250 mm/s |
500 mm |
|
HS-060 Series |
Ø25 mm |
500 N |
≤ 0.01 mm |
400 mm/s |
1000 mm |
|
HS-080 Series |
Ø40 mm |
1200 N |
≤ 0.015 mm |
500 mm/s |
1500 mm |
|
HS-100 Series |
Ø50 mm+ |
Up to 5000 N |
≤ 0.02 mm |
800 mm/s |
2000 mm+ |
Material & Mechanical Specifications
Housing Material
High-Strength Anodized Aluminum Alloy (6061-T6) or Optional Stainless Steel (304 or 316)
Screw Type
Precision Ground Ball Screw (C5 Grade) or Precision Rolled Ball Screw (C7 Grade)
Motor Configurations
Direct inline or parallel foldback setups, custom-flanged to fit any global motor brand specified.
Protection Level
Standard IP54, with customizable structural upgrades up to IP65.
Industrial-Grade Rigidity: High-strength aluminum or alloy steel housing with enhanced axial and radial load bearings, maintaining zero torque drift under continuous duty cycles.
Zero-Maintenance TCO Advantage: Factory-sealed with premium synthetic long-life grease, achieving up to 10,000 km of cumulative travel or 3 years of standard operation without re-lubrication.
Industry 4.0 & Digital Twin Ready: We provide standardized kinematic datasets for virtual commissioning through platforms like Siemens NX and Process Simulate, supporting embedded sensor integration for real-time predictive maintenance.
Ultra-Quiet Operation: Precision ground screws and optimized internal geometry drop runtime noise levels to ≤ 50 dB, ideal for lab and medical automation environments.
Semiconductor & Electronics: Vacuum-compatible configurations (≤ 1e-6 Torr) utilizing low-outgassing materials and ESD-safe protections for precise wafer handling and wire bonding.
Medical & Laboratory Automation: Equipped with medical-grade or food-grade lubrication, stainless steel thrust rods, and IP65 washdown protection for liquid handling and diagnostic scanning.
Lithium-Battery Manufacturing: Customized copper-free and zinc-free (Cu/Zn-free) designs to completely prevent chemical contamination in battery cell assembly dry rooms.
Precision Laser Processing: The hollow center acts as a perfect beam delivery path or protective gas channel for 5-axis laser cutting and welding heads.
Customization & Engineering Workflow
We specialize in developing tailored OEM and ODM solutions for global engineering teams. Our core engineering capabilities include:
Hollow Bore Customization
Tailored inner diameters ranging from Ø10 mm to Ø80 mm+ to match your specific wiring bundles, gas hoses, or secondary shafts.
ieldbus Protocol Integration
Direct support for EtherCAT, PROFINET, CANopen, and EtherNet/IP via coordinated drive matching.
Fast-Track Prototyping
Complete 2D and 3D CAD design models provided within 48 hours for client design-in verification.
Global Trust & Quality Assurance
Precision Verification: Every actuator’s positioning accuracy and repeatability are verified via Renishaw laser interferometers, with official calibration charts shipped inside the box.
100% Dynamic Run-In: Every single unit undergoes a 24-hour continuous dynamic run-in and load test before packaging to eliminate early-stage component defects.
Full Traceability: Every cylinder features a laser-etched unique tracking serial number for lifetime component sourcing and quality control logging.
Supply Chain Guarantee (SLA)
Warranty Period: 18-month comprehensive warranty with global remote technical support.
Lead Time: 2 to 3 weeks for standard configurations; 4 to 6 weeks for deep OEM customization.
Packaging: Export-grade vacuum-sealed anti-static wrapping inside heavy-duty reinforced wooden crates.
