High-Precision Electric Servo Press Machine | Smart Assembly Solutions
100% Data Traceability & Real-Time Quality Monitoring
Energy Saving Up to 70% Compared to Hydraulic & Pneumatic Presses
Precision Force Accuracy: ±1% | Position Repeatability: ±0.01 mm
Product Overview
LIND's Electric Servo Press Machine is a next-generation smart pressing system driven by high-performance servo motors and precision ball screws (Electric Cylinders). Designed for modern automated assembly lines, it replaces traditional hydraulic and pneumatic presses by offering unmatched precision, cleanliness, and flexibility.
With integrated force and displacement sensors, it provides real-time monitoring of the pressing process, ensuring zero-defect manufacturing for global B2B clients in automotive, electronics, medical, and precision machinery industries.
Key Features & Technological Advantages
High Precision & Programmable Flexibility: The system allows programmable control of pressing speed, position, and force. Multistage pressing profiles can be easily configured via the HMI (Human-Machine Interface) to fit complex and delicate assembly tasks.
Real-Time Quality Evaluation (Envelope Curve Technology): Beyond standard window evaluation, our proprietary software supports Envelope Curve Monitoring. Users can set an upper and lower limit curve zone. Any temporary deviation (such as micro-cracks in components or slight misalignment) will instantly trigger an alarm and stop the machine, preventing defective parts from passing to the next process.
Full Data Traceability & IoT Ready: Supports mainstream industrial protocols (Modbus, Profinet, EtherCAT) for seamless MES/ERP integration. All pressing data (Force vs. Displacement curves, peak force, final position, timestamp) can be saved locally or exported via USB/Ethernet in Excel/CSV formats for 100% quality traceability.
Green, Safe & Low Maintenance: No hydraulic oil leak risks, making it ideal for cleanroom environments. The machine operates only when pressing, reducing energy consumption by up to 70%. Built-in hardware interlocks, dual-channel Type 4 safety light curtains, and ergonomic two-hand synchronous start buttons maximize operator safety.
Technical Specifications
|
Parameter |
Specification / Range |
|
Nominal Force Range |
0.5 kN - 200 kN (Customizable up to 500 kN) |
|
Stroke Length |
100 mm / 200 mm / 300 mm (Standard / Customizable) |
|
Max Pressing Speed |
Up to 200 mm/s |
|
Position Repeatability |
±0.01 mm |
|
Force Accuracy |
±1% F.S. (Full Scale) |
|
Frame Type Options |
C-Type / Gantry Type / Desktop Type / Press Module Only |
|
Control Modes |
Constant Speed, Final Position, Final Force, Target Distance |
|
Power Supply |
AC 220V / 380V, 50/60Hz (Configured per destination country) |
Premium Hardware Configuration
We decline low-cost, generic components. LIND cooperates with global leading brands to ensure industrial-grade reliability and 24/7 continuous operation:
Servo Motor & Drive
Panasonic (Japan) / Siemens (Germany) - Global warranty, high response speed.
Ball Screw / Electric Cylinder
Built with premium NSK (Japan) / HIWIN (Taiwan) components - High load capacity, long lifespan.
Load Cell (Force Sensor)
HBM (Germany) / Kistler (Switzerland) - High-frequency dynamic response, linearity error <0.05%.
PLC & Control System
Siemens / Mitsubishi - User-friendly UI, multi-language support, easy automation integration.
Typical Applications
Automotive Industry
Press-fitting of engine bearings, oil seals, water pumps, steering gears, and electric vehicle (EV) motor rotors/stators.
Electronics & 3C Industry
Circuit board (PCB) component pressing, smartphone chassis assembly, camera module integration, and connector insertion.
Precision Machinery
Gearbox assembly, precision valve components, micro-motor shaft pressing, and household appliance manufacturing.
Customization & OEM/ODM Workflow
Backed by our strong R&D team specialized in electric linear motion and industrial electric cylinders, we provide tailored solutions to fit your specific automation lines:
Requirement Submission: Send us your part drawings, assembly requirements, and target cycle times.
Engineering Evaluation: LIND engineers analyze the application and select the optimum force, stroke, and motor power.
3D Design Proposal: We provide 3D CAD models of the press frame and tooling fixtures for your approval.
Manufacturing & Testing: Strict production followed by a 48-hour continuous load test and precision calibration.
Global Delivery: Vacuum-sealed VCI packaging and global shipment with complete documentation.
International Packaging & Shipping Protection
Anti-Rust Vacuum Sealing: All exposed metal parts are coated with eco-friendly anti-rust oil and vacuum-sealed with VCI (Volatile Corrosion Inhibitor) film to resist sea salt corrosion during ocean freight.
Heavy-Duty Crate: Packed in ISPM-15 compliant, fumigation-free wooden cases, reinforced with steel strapping and internal shock-absorbing foam blocks.
Customs Documents Support: Complete provision of Commercial Invoice, Packing List, Certificate of Origin, and CE Certificates for smooth customs clearance.
Global After-Sales & Technical Support
12-Month Warranty: Standard 1-year warranty covering all core components (Servo motor, cylinder, sensors).
2-Hour Rapid Response: Technical support via WhatsApp, Zoom, or Microsoft Teams within 2 hours of inquiry.
Remote Diagnostics: Secure internet connection allows our engineers to remotely log into the PLC system for troubleshooting, software updates, or parameter calibration.
Spare Parts Dispatch: Main wear parts and seals are kept in stock and can be dispatched via DHL/FedEx within 48 hours.
Frequently Asked Questions (FAQ)
Q: Can your servo press machine integrate into our existing Siemens PLC automation line?
A: Yes. Our control system natively supports Profinet, EtherCAT, and Modbus protocols, making it fully compatible with Siemens, Allen-Bradley, Mitsubishi, and other mainstream PLCs.
Q: What is the standard lead time for a customized electric servo press?
A: Standard models typically take 15 to 20 days. For highly customized solutions involving non-standard stroke lengths, high tonnages, or custom fixtures, the lead time is generally 30 to 45 days.

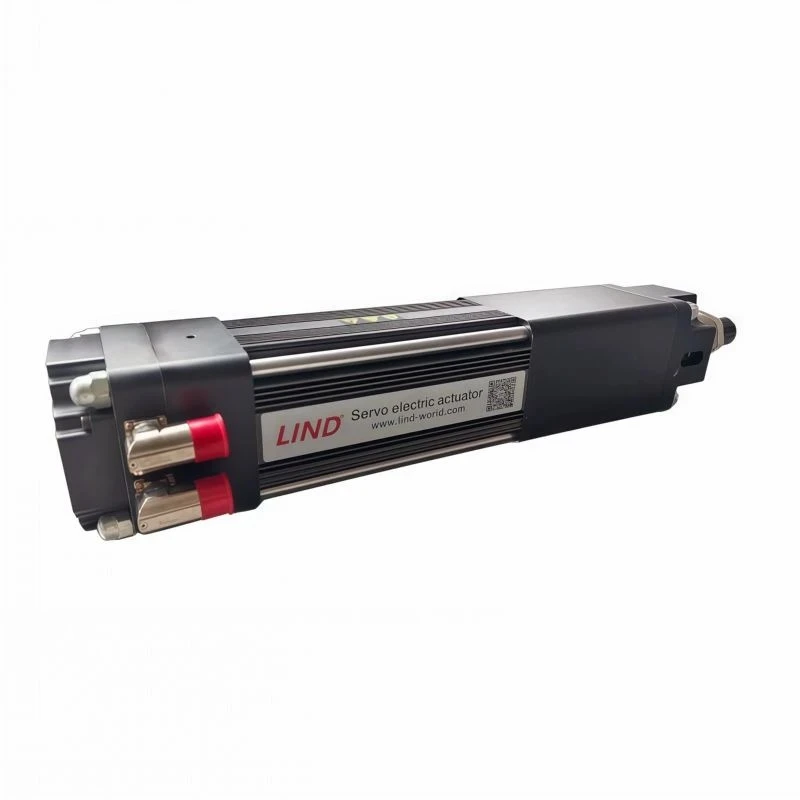

Q: Do you manufacture the electric cylinders used in these presses?
A: Yes, LIND is a dedicated manufacturer of high-quality Electric Cylinders. The servo press machines utilize our own industrial heavy-duty electric cylinders, ensuring perfect mechanical synchronization, optimal cost-efficiency, and direct source-factory support.
