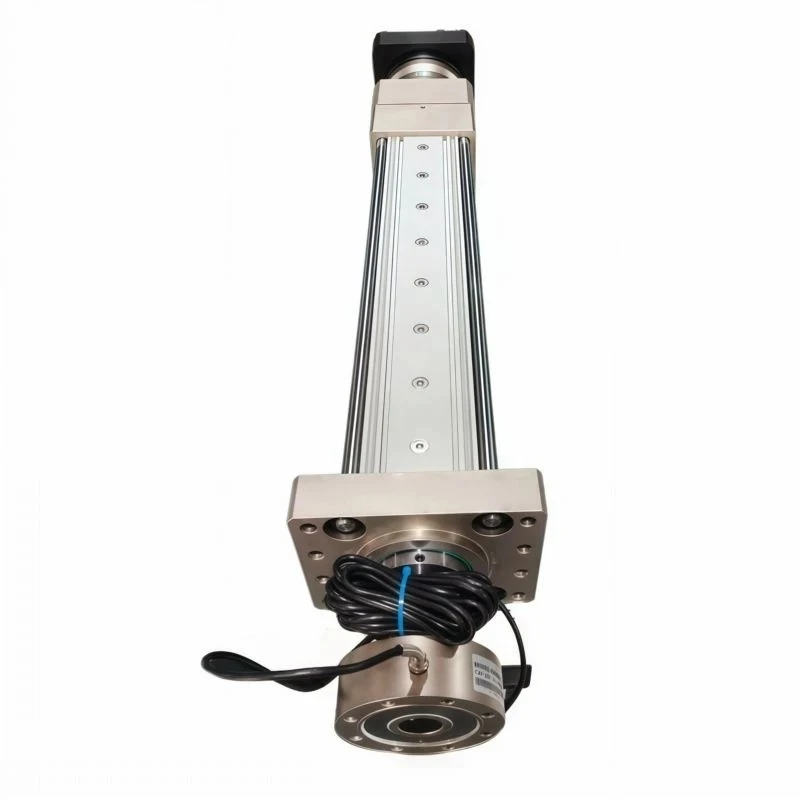

Heavy-Duty Custom High Torque Electric Cylinder | Robust Linear Actuator for Industrial Automation
Engineered for precision, built for power. Seamlessly replacing traditional hydraulic and pneumatic systems with up to 500kN of thrust. Fully customizable to fit your exact engineering specifications.
Product Overview & Key Advantages
1. Empowering Heavy Industries with High-Torque Precision
Our Custom High Torque Electric Cylinders are designed to handle the most demanding linear motion applications. By combining high-grade ball/roller screws with advanced servo motor technology, these actuators deliver exceptional thrust, rigid durability, and micron-level accuracy.
2. Why Choose Our Custom High-Torque Actuators?
High Load Capacity: Specialized internal structures allow for massive torque transmission and axial load resistance, ensuring stable operation under extreme conditions.
100% Tailored Solutions: From stroke length, mounting options, and motor integration to specialized coatings for harsh environments, we build exactly what your project demands.
Eco-Friendly & Cost-Effective: Elimination of oil leaks, reduced energy consumption, and minimal maintenance compared to hydraulic systems.
Long Operational Lifespan: Built with high-strength alloy steel and premium bearings to ensure millions of cycles with zero degradation in performance.
Technical Specifications
|
Parameter |
Specification Range |
Notes / Customization Options |
|
Rated Thrust |
10 kN - 500 kN |
Can be increased based on project requirements |
|
Rated Speed |
0 mm/s - 500 mm/s |
Optimized for torque or speed priority |
|
Max Stroke Length |
Up to 3000 mm |
Fully customizable |
|
Repeatability |
Plus/minus 0.01 mm - plus/minus 0.02 mm |
Depends on screw type: Ball or Roller screw |
|
Screw Type |
Ball Screw / Planetary Roller Screw |
Roller screw recommended for ultra-high loads |
|
Input Voltage |
220V / 380V / 480V AC |
Adaptable to global industrial power standards |
|
IP Rating |
IP65 (Standard) / IP66 / IP67 |
Optional for washdown or marine environments |
|
Operating Temp |
-20°C to +60°C |
Extended range customizable (-40°C to +120°C) |
|
Motor Integration |
Inline / Parallel |
Compatible with Siemens, Panasonic, Delta, etc. |
Customization Capabilities
Tailored to Your Exact Blueprint
We don't just sell products; we engineer solutions. Our global B2B clients benefit from our comprehensive custom manufacturing capabilities:
Mechanical Interface Customization: Trunnion, clevis, flange, or foot mounts designed to fit your existing machinery perfectly.
Motor Flexibility: We can supply the cylinder with pre-integrated top-tier servo/stepper motors (Siemens, Mitsubishi, Yaskawa) or design the custom adapter flange for you to mount your own motor.
Harsh Environment Adaptability: Anti-corrosion coatings, stainless steel housing, and special sealing configurations for marine, mining, or chemical processing environments.
Smart Feedback Systems: Integrated limit switches, linear encoders, or load cells for real-time force and position monitoring.
Industrial Applications
Where Power Meets Precision
Our high torque electric cylinders are widely utilized across various heavy industries worldwide:
Automotive Manufacturing: Press fitting, body assembly lines, and stamping dies.
Simulators & Entertainment: Multi-degree-of-freedom (DoF) motion platforms and flight simulators.
Metallurgy & Steel Mills: Ladle tilting, roller adjustment, and heavy valve control.
Testing Equipment: High-force fatigue testing rigs and material tensile testing.
Aerospace & Defense: Precision positioning for satellites, antennas, and heavy cargo loading.
Quality Assurance
Strict Quality Control & Streamlined Global Supply
As a quality-centric global supplier, Lind World ensures that every high-torque cylinder complies with international industrial standards.
100% Full Inspection: Every unit undergoes rigorous dynamic load testing, sealing tests, and positioning accuracy verification before shipment.
Traceable Components: We use premium screw and bearing brands to ensure industrial-grade reliability.
Our 4-Step OEM/ODM Process
Inquiry & Tech Consultation
Send us your payload, speed, and stroke requirements. Our engineering team responds within 24 hours.
3D CAD Drawing Confirmation
We provide detailed 3D models for you to verify fitment within your assembly.
Precision Manufacturing
Transparent production tracking with regular updates.
Global Logistics & Support
Secure, seaworthy packaging with full customs clearance support and lifelong technical assistance.
FAQ
Q: Can your high torque electric cylinders completely replace hydraulic cylinders in heavy-duty applications?
A: Yes, in most applications. Our high-torque electric cylinders are engineered to deliver thrust equivalent to hydraulics (up to 500kN or more) while offering significant advantages: no oil leakage risks, precise multi-position control, higher energy efficiency, and virtually zero maintenance. However, we recommend reviewing the duty cycle and shock load conditions with our engineers during the design phase.
Q: What parameters do I need to provide to get a custom solution and quote?
A: To provide an accurate technical proposal, we usually need the following key parameters:
Max/Rated Thrust (Load): How many kN or kg/tons needs to be pushed or pulled?
Stroke Length: The total travel distance required (in mm).
Speed: Desired moving speed (mm/s).
Duty Cycle: How often does it operate (e.g., continuous, or specific cycles per minute)?
Installation Constraints: Any specific space limitations or mounting requirements (e.g., flange, trunnion)?
Q: Do you provide the servo motor and drive, or just the cylinder body?
A: We offer both options. We can supply a complete turn-key solution including the electric cylinder, pre-matched top-tier servo motor, and drive (we support global brands like Siemens, Panasonic, Delta, etc.). Alternatively, if you prefer to source motors locally, we can design the input interface and flange adapter according to your motor's specification drawing.
Q: What is the typical lead time for a customized high torque electric cylinder?
A: For custom engineering projects, the general lead time is 4 to 6 weeks after the 3D drawing is confirmed. This includes precise machining, heat treatment, assembly, and rigorous factory testing. For rush orders or specific urgent project phases, please contact our sales team to discuss an expedited schedule.
Q: How do you ensure the product quality and durability for overseas buyers?
A: Quality is our baseline. First, we use premium components (high-grade alloy steels, world-class ball/roller screws, and top-tier bearings). Second, every single high-torque cylinder undergoes a 100% full-load dynamic test before shipping. We provide a comprehensive factory test report and a standard 12-month warranty, along with lifetime global technical remote support.
Q: Can your electric cylinders operate under harsh environment conditions?
A: Absolutely. We can customize the protection level up to IP66 or IP67. For special industrial environments, we offer options such as stainless steel housings, specialized anti-corrosion coatings (for marine or chemical environments), high/low-temperature seals (operating from -40°C to +120°C), and dust-proof bellows to protect the cylinder rod.
