High-Precision Intelligent Servo Press System
The LIND Intelligent Servo Press System integrates advanced electric cylinder technology, precision servo drive, and real-time monitoring software. Designed to replace traditional hydraulic and pneumatic presses, our system offers unparalleled accuracy, up to 80% energy savings, and 100% data traceability. It is the ideal solution for high-end manufacturing environments, including automotive electronics, medical devices, and aerospace component assembly.
Why Leading Global Manufacturers Choose LIND
Micro-Level Precision
Achieves repeatable positioning accuracy up to ±0.01 mm and force repeatability of ±1%, ensuring zero-defect production even in high-stress applications.
100% Data Traceability & MES Integration
Real-time sampling of Force vs. Displacement curves. Seamlessly connects to factory MES/ERP networks via SQL database or CSV export for comprehensive quality tracking.
Eco-Friendly & Energy Saving
Reduces energy consumption by 70% to 80% compared to traditional hydraulic systems. Zero oil usage eliminates contamination, reduces factory noise, and supports green manufacturing initiatives.
Flexible Programming
Supports multi-stage pressing profiles (constant speed, constant force, position stop) with instantaneous recipe switching for rapid product changeovers.
Technical Specifications
|
Parameter / Feature |
Specification |
|
Pressing Force Range |
0.5 kN – 500 kN (customizable up to 1000 kN for heavy-duty applications) |
|
Stroke Length |
50 mm – 500 mm (custom stroke available upon request) |
|
Maximum Pressing Speed |
Up to 300 mm/s (depending on load and configuration) |
|
Positioning Accuracy |
±0.01 mm under closed-loop servo control |
|
Force Measurement Accuracy |
±0.5% – ±1% F.S. depending on sensor configuration |
|
Supported Communication Protocols |
PROFINET / EtherCAT / EtherNet/IP / Modbus TCP |
|
Power Supply |
3-phase AC 380V / 220V, 50/60 Hz |
|
Protection Rating |
IP54 (standard), IP65 (optional for harsh environments) |
Advanced Control & Quality Evaluation Modes
Our proprietary software allows control engineers to program complex motions and set stringent quality limits within minutes.
Constant Speed to Position Stop: Perfect for precision-depth assembly, preventing damage to fragile substrates or electronic components.
Constant Force to Displacement Limit: Ideal for structural tight-fits, interference joints, and material deformation testing.
Envelope Curve & Window Evaluation: Dynamically samples up to 5 independent evaluation windows during a single stroke. Automatically flags and isolates NOK (Not OK) parts caused by micro-cracks or missing sub-components.
System Architecture & Premium Componentry
To guarantee industrial-grade reliability, LIND relies on a robust, premium supply chain for all structural and electrical sub-systems.

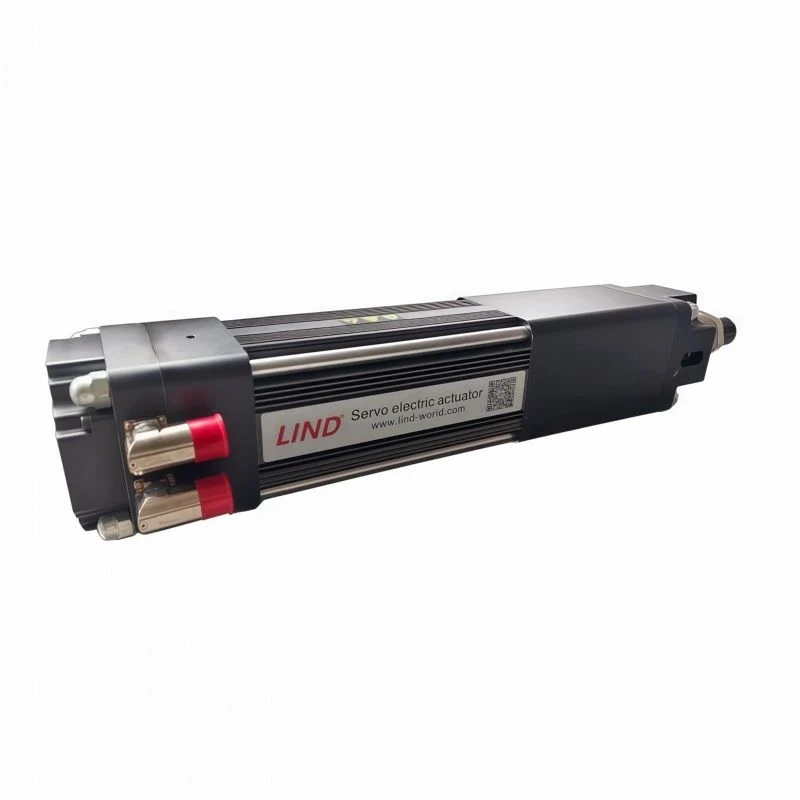

Heavy-Duty Servo Actuator: Built around high-rigidity housings and premium ball screws or planetary roller screws integrated with high-precision inline load cells.
High-Response Servo Drives: Advanced motion control matching international communication standards for instantaneous feedback and synchronization.
Intuitive HMI Touch Screen: Industrial-grade interface optimized for real-time curve plotting, parameter entry, and comprehensive alarm logging.
Target Applications
Automotive Industry
EV battery cell pressing, engine valve guide assembly, steering gear bearing installation, and fuel injector assembly.
Electronics & Electrical
High-density PCB press-fit, connector pin insertion, smartphone structural component pressing, and relay manufacturing.
Medical & Aerospace
Precision medical pump assembly, aerospace bearing installations, and lab automation hardware.
Frequently Asked Questions (FAQ)
Q: What are the primary advantages of a servo press system over traditional hydraulic or pneumatic presses?
A: The LIND Intelligent Servo Press System offers three critical advantages:
Micro-level Precision: It achieves a positioning accuracy of plus or minus 0.01 mm, whereas hydraulic systems fluctuate due to oil temperature changes.
Energy Efficiency: It consumes energy only during the active pressing stroke, cutting electricity costs by up to 70% to 80%.
Data Traceability: It records force and displacement data for every single cycle, a mandatory requirement for modern automotive and medical device manufacturing.
Q: Can your servo press software connect directly to our factory MES system?
A: Yes. Our control system supports standard industrial communication protocols including Profinet, EtherCAT, and EtherNet/IP. Data can be exported dynamically via CSV, Excel, or uploaded directly to your centralized SQL database, allowing for seamless integration with your existing MES or ERP architecture.
Q: Do you support customized strokes, force capacities, or mechanical mountings?
A: Absolutely. As an established exporter, LIND provides comprehensive OEM and ODM customization. We can modify the maximum pressing force, stroke lengths, motor alignments (inline or parallel configurations), and software logic to match your specific production line layout.
Q: How does the system handle quality control and reject defective parts?
A: The system utilizes real-time Force vs. Displacement curve monitoring. By setting up to 5 independent evaluation windows or using an envelope curve benchmark, the software instantly detects anomalies such as cross-threading, missing sub-components, or material micro-cracks. If a part falls outside the preset limits, a NOK (Not OK) signal is triggered immediately to halt the process or divert the part.
Q: What is your standard lead time for international orders?
A: For standard configurations, our typical production lead time is 3 to 4 weeks after design confirmation and deposit receipt. For highly customized or heavy-duty systems (200 kN and above), the lead time generally ranges from 6 to 8 weeks.
Q: How do you handle international shipping, customs, and technical support?
A: We pack all machinery in ISPM-15 compliant, fumigation-free wooden crates with multi-layer vacuum anti-rust wrapping to withstand maritime and air transport. For technical support, we offer 24/7 remote diagnostics and video consultations. Should any component require replacement under our 12-month warranty, we dispatch parts globally via express couriers like DHL, FedEx, or UPS.
