Introduction

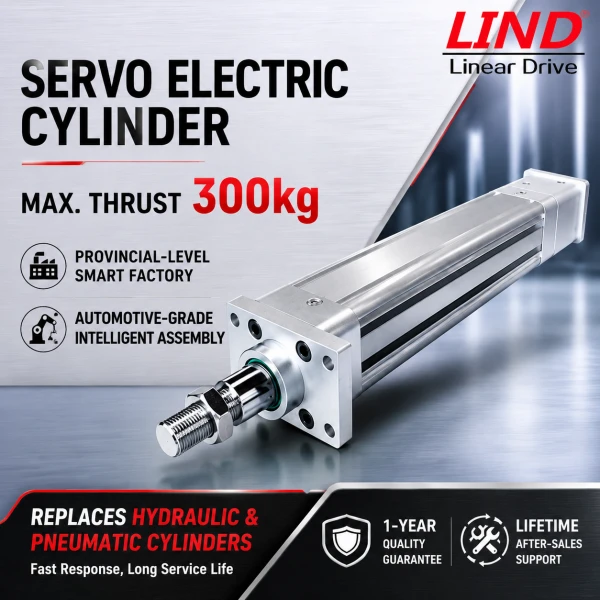

The LOE63 direct-connect servo electric cylinder is a lightweight yet high-output linear actuator built for high-speed pick-and-place, precision sorting and automated assembly workflows. With maximum 1000mm long stroke and up to 3843N rated thrust, it serves medium & heavy-duty automation replacing traditional pneumatic and hydraulic cylinders.
Key Features
1. High Precision
Ground ball screws with closed-loop control deliver ±0.01 mm repeatability.
2. High Responsiveness
Motor directly drives the screw with no gears or couplings, enabling instant start/stop and smooth high-speed cycling.
3. Durability
IP65-rated housing and factory-sealed lubrication ensure 20,000 hours of maintenance-free operation in dusty or humid environments.
4. Plug-and-Play
Pre-aligned for standard servo motors and common mounting styles; connects directly to PLC systems without reconfiguration.
|
Motor Power (W) |
400W |
750W |
|||
|
Rated torque N. m |
1.27 |
2.4 |
|||
|
Driving mode |
Ball screw C7 conversion/ball screw C5 grinding (default C7) |
||||
|
Repeat positioning accuracy (mm) |
±0.02/±0.01 |
||||
|
Screw Lead (mm) |
5 |
10 |
5 |
10 |
|
|
Max speed (mm/sec) |
250 (1: 1) 83 (3: 1) |
500 (1: 1), 167 (3: 1) 125 (4: 1), 100 (5: 1) 83 (6: 1) |
250 (1: 1) |
500 (1: 1) 167 (3: 1) |
|
|
Rated thrust (N) |
1360(1: 1) 4080(3: 1) |
680 (1: 1), 2040 (3: 1) 2720 (4: 1), 3400 (5: 1) 4080 (6: 1) |
2562 (1: 1) |
1281 (1: 1) 3843 (3: 1) |
|
|
Effective stroke (mm) |
10-1000 |
||||
|
Sensor |
Electronic magnetic switch*3 |
||||
|
Motor Power (W) |
1000W (3000rpm) |
1000W (2000rpm) |
1500W (3000rpm) |
||
|
Rated torque N. m |
3.18 |
4.77 |
4.77 |
||
|
Driving mode |
Ball screw C7 conversion/ball screw C5 grinding (default C7) |
||||
|
Repeat positioning accuracy (mm) |
±0.02/±0.01 |
||||
|
Screw Lead (mm) |
5 |
10 |
10 |
10 |
|
|
Max speed (mm/sec) |
250 (1: 1) |
500 (1: 1) |
333 (1: 1) |
500 (1: 1) |
|
|
Rated thrust (N) |
3395 (1: 1) |
1696 (1: 1) |
2546 (1: 1) |
2546 (1: 1) |
|
|
Effective stroke (mm) |
10-1000 |
||||
|
Sensor |
Electronic magnetic switch*3 |
||||
What Makes Ball Screws Superior To Lead Screws?
1.Rolling ball transmission hits 90%-96% efficiency, cutting power draw and heat accumulation far better than sliding-type lead screws
2.Built-in preload design eliminates backlash, maintaining identical positioning accuracy during forward & reverse movement
3.Low abrasion rolling structure greatly extends service life under round-the-clock cyclic reciprocation
4.Capable of stable high-speed operation without jitter, perfectly matching fast-paced automated production lines
Advantages Of Direct Drive Architecture
1.This model cancels gears, couplings and reducer parts between motor and ball screw:
2.Zero transmission clearance means no positioning deviation at low, medium or high running speeds
3.Reduced moving mass shortens acceleration & deceleration time to lift overall line throughput
4.Fewer consumable wearing parts slash long-term factory maintenance expenses
5.Minimal energy loss during power transfer reduces continuous production electricity bills
Practical Merits Of Fold-Back Layout
1.Folded motor design drastically shortens overall cylinder length, solving length limit issues of straight inline actuators for compact machine frames
2.Adjustable motor installation angle adapts to vertical, horizontal and side-mounted equipment layouts
3.Integrated reinforced frame avoids bending under full rated thrust, locking stable precision for long-duration heavy-load cycles
Full Customization Options
Multiple adjustable parameters to match unique industrial automation requirements:
• Travel stroke: Standard 10–1000mm, extra-long non-standard stroke customizable
• Ball screw precision: C7 standard / C5 precision ground grade
• Motor power: 400W / 750W / 1000W / 1500W multi power options
• Screw lead: 5mm / 10mm pitch for different speed-thrust demands
• Rod end connectors: External thread / Internal thread / Spherical plain bearing / Y hinge
• Magnetic limit switch quantity & signal mode customised
• Special mounting flanges, transition front cap brackets available
• Custom rod surface coating, seal material & working temperature range
• IP protection grade upgrade, personalized cylinder color & sealing configuration
technical Specifications
| Application scenarios | Industrial automation, mechanical manufacturing and processing |
| Material | 45 #, tin bronze, 304 stainless steel, nylon, 6061 aluminum alloy |
| Cylinder diameter | 63mm |
| Rod diameter | 40mm |
|
Travel range |
10-1000mm |
| Speed ratio | 1:1 |
| Rated thrust | 1360N |
| Screw lead | 5mm |
| Maximum speed | 250mm/s |
| Repetitive positioning accuracy | ± 0.02 |
| Suitable motor power | Inovance 400W |
| Surface treatment of piston rod | Hard chrome plating |
| Sealing material | Polyurethane (default), Nitrile rubber, Fluororubber (customer requirement) |
| Working temperature | -40~80 ° C, other temperatures (customer requirements) |
| Weight | 5-20Kg |
| Color | Silver Aluminum Alloy |
|
Customized support |
LOE63 Direct-connect Electric Linear Cylinder suitable for general cylinder and oil cylinder replacement applications with relatively high speed, quietness, and low load, with a maximum rated thrust of 500KG. |
Applications
Automotive
Engine component pressing, welding fixture positioning, chassis inspection.
3C Electronics
Display lamination, PCB insertion, precision dispensing.
New Energy
Lithium battery slitting, solar module laminating, EV charger testing.
General Automation
Packaging sealing, material handling, machine tool loading/unloading
Why choose us
Fast Delivery
In-house production line ensures stock availability for standard models and 7-day lead time for custom prototypes.
Custom Engineering
Tailored strokes, mounts, and sensor options to match unique machine layouts and functional needs.
Global Support
24/7 multilingual technical assistance for selection, integration, and troubleshooting.
Certified Quality
CE and ISO9001 compliant; every unit undergoes thrust, life-cycle, and accuracy validation.
FAQ
Q1: Why Ball Screw Instead of Lead Screw?
A: Higher transmission efficiency (90%–96% vs 30%–60%), lower power consumption and less heat buildup during continuous operation.
Superior movement smoothness, higher repeat positioning accuracy, suitable for precision automation applications.
Less abrasion, longer service life under cyclic reciprocating working conditions.
Support higher operating speed; preload structure can effectively reduce backlash for bi-directional motion.
Q2: Is regular maintenance needed?
A: No-sealed for life with pre-filled grease; no oil changes or air-line checks required.
Q3: How noisy is it during operation?
A: Very quiet-no gearbox or compressed air hiss; typical noise level below 55 dB.
Q4: What's the lead time for custom units?
A: Standard models ship in 3 days; customized versions (e.g., extended stroke) deliver within 7–15 days.
