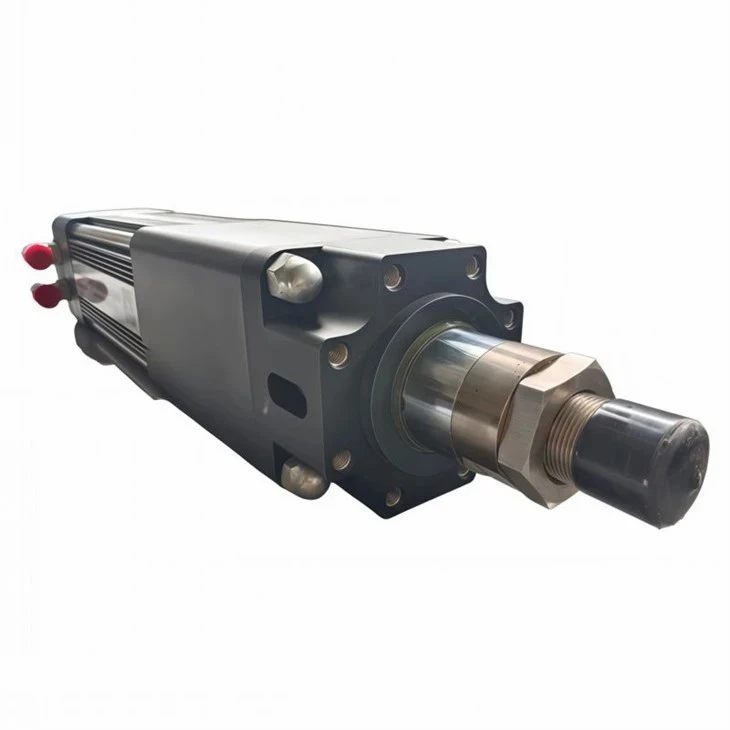

Industrial Precision Servo Press Machine / Intelligent Servo Press System
High-Precision, Fully Digitized Smart Pressing Solutions Engineered for Modern Precision Manufacturing.
Product Overview
Combining cutting-edge electric cylinder technology with proprietary control software, our Precision Servo Press Machine delivers micro-level accuracy through real-time closed-loop control of both force and displacement. As a flagship integrated solution from Lind-World, it is engineered for high-end, zero-defect production in automotive, electronics, and green energy industries. It is the ultimate asset to help you transition into a fully digitized smart factory.
Key Technical Advantages
High-Precision Closed-Loop Control
Utilizing high-resolution encoders and precision load cells, the system monitors pressing status in real-time, achieving repeatability of ±0.01 mm and force accuracy of ±1%.
100% Quality Traceability & Data Management
Automatically generates and stores "Force-Displacement" curves (F-S Curve). Supports seamless data export (Excel/CSV) and integration with MES systems for 100% production traceability.
Flexible Pressing Modes
Supports multiple operating modes including constant speed, position stop, defined-force stop, and relative distance stop, catering to the complex process requirements of diverse workpieces.
Eco-Friendly & Low Noise
Compared to traditional pneumatic or hydraulic presses, it eliminates hydraulic oil pollution, reduces energy consumption by 70%-80%, and maintains operational noise below 65dB-perfect for strict cleanroom standards.
Technical Specifications
|
Specification |
Standard Range / Value |
|
Nominal Force Range |
0.5 kN - 200 kN (Customizable upon request) |
|
Standard Stroke |
100 mm / 200 mm / 300 mm / 400 mm (Max up to 1000mm) |
|
Max Pressing Speed |
100 mm/s - 300 mm/s |
|
Repeatability |
±0.01 mm |
|
Force Accuracy |
±1% F.S. (Full Scale) |
|
Power Supply |
AC 220V / 380V, 50/60Hz (Global Voltage Adaptable) |
|
Control System |
Proprietary Servo Pressing Software + PLC + Touch Screen HMI |
|
Communication Interface |
Modbus TCP, Profinet, EtherCAT, RS485, MQTT |
Premium Component Configuration
World-Class Component Alliance. We only select top-tier global brands for our core components to ensure ultimate stability and ultra-long lifespan under 24/7 high-intensity industrial operations.
|
Component |
Brand / Selection Standard |
Advantage |
|
Core Actuator |
Lind-World Heavy-Duty Electric Cylinder |
Native mechanical match, longer service life |
|
Servo Motor |
Yaskawa / Mitsubishi |
High dynamic response, ultra-stable torque |
|
Load Cell |
US / German High-Precision Brand |
Excellent linearity, high anti-eccentric load capacity |
|
Controller / PLC |
Siemens / Omron |
Industrial-grade bus communication, zero lag |
|
Screw & Guide |
THK / HIWIN (High-Precision Grinding Grade) |
Precision transmission, micron-level backlash control |
Applications & Technology Benchmarking
Target Industries & Applications
Automotive Industry: Engine component assembly (valve guides, bearings), gearbox gear assembly, automotive water/oil pump assembly, and chassis suspension bushing pressing.
Electronics & Precision Machinery: Smartphone/computer motherboard component pressing, precision connector insertion force testing, and micro-motor rotor bearing pressing.
New Energy Industry: Lithium battery cell pressing, hydrogen fuel cell bipolar plate stacking, and EV motor stator/rotor assembly.
Technology Benchmarking (Why Upgrade to Servo Press?)
|
Feature |
Traditional Hydraulic |
Traditional Pneumatic |
Lind-World Servo Press |
|
Accuracy |
Poor, highly affected by oil temp |
Poor, affected by air fluctuations |
Ultra-high (±0.01 mm), closed-loop digital |
|
Traceability |
Cannot record dynamic curves |
Cannot store production data |
100% Data retention, MES Ready |
|
Energy Cost |
Very high, motor runs constantly |
High, constant air supply loss |
Ultra-low, power saved on standby |
|
Environment |
Heavy risk of hydraulic oil leaks |
Noisy, emits air oil mist |
100% Clean, certified for cleanrooms |
Customization & Engineering Capabilities
We Don't Just Sell Standard Products; We Deliver Engineering Solutions.
Leveraging Lind-World's core expertise as a direct manufacturer of electric cylinders, our engineering team supports extensive customization:
Structural Framework: Custom C-frame, two-post, four-post, horizontal, or gantry structures.
Tooling Integration: Custom pressing indenters, automatic sliding tables, multi-station rotary tables, and safety light curtain integration.
Extended Specifications: Custom capabilities for extra-long strokes up to 1000mm or heavy-duty capacities up to 500kN.
Factory Acceptance Testing (FAT) & Global Shipping Factory Acceptance Testing (FAT) Protocols
72-Hour Endurance: 72 hours of uninterrupted full-stroke, full-load reciprocal operation test before shipment.
Laser Interferometer Calibration: We utilize Renishaw laser interferometers to calibrate every machine to the micron level. A certified calibration report is dispatched with the unit.
Electrical Safety Compliance: 100% tested for high-voltage and insulation, fully complying with CE electrical safety standards.
Heavy-Duty Packaging for Safe International Transit
Vacuum Anti-Rust Wrapping
The machine is enclosed in vacuum barrier bags with industrial desiccants to prevent damage from maritime salt spray and humidity.
ISPM 15 Compliant Crates
Housed in high-strength, fumigation-free plywood crates, ensuring trouble-free global customs clearance.
Base Bolting & Anti-Shock
The machine base is securely bolted to the steel/timber chassis of the crate with high-density shock-absorbing padding for multi-modal transit.
FAQ Section
Q: What is Lind-World's core advantage as an electric cylinder manufacturer?
A: The core actuator of a servo press is the electric cylinder. While many market integrators outsource this component, Lind-World develops and manufactures our own electric cylinders in-house. This ensures perfect mechanical compatibility, superior structural rigidity, optimized cost-efficiency, and long-term spare parts availability.
Q: Is your software/HMI in English? How is data exported?
A: Yes, our software and HMI feature a 100% native English interface (other languages can be customized). The local system stores over 500,000 cycles of historical pressing data and curves, which can be easily exported via USB or Ethernet in Excel/CSV formats for quality analysis.
Q: How do you provide post-sales and remote support for international buyers?
A: Every machine is shipped with comprehensive English operation manuals, assembly videos, and schematic diagrams. We provide 24/7 technical support via email and video conferences. Furthermore, with the optional IoT remote module, our engineers from HQ can perform online diagnostics and software upgrades worldwide.
