High Torque Hollow Shaft Actuator | Heavy-Duty Precision Rotary & Linear Motion
Engineered for precision motion control, space-saving cable management, and maximum torque density, our High Torque Hollow Shaft Actuator is the premium choice for demanding industrial automation, robotics, and smart factory integration.
Product Overview

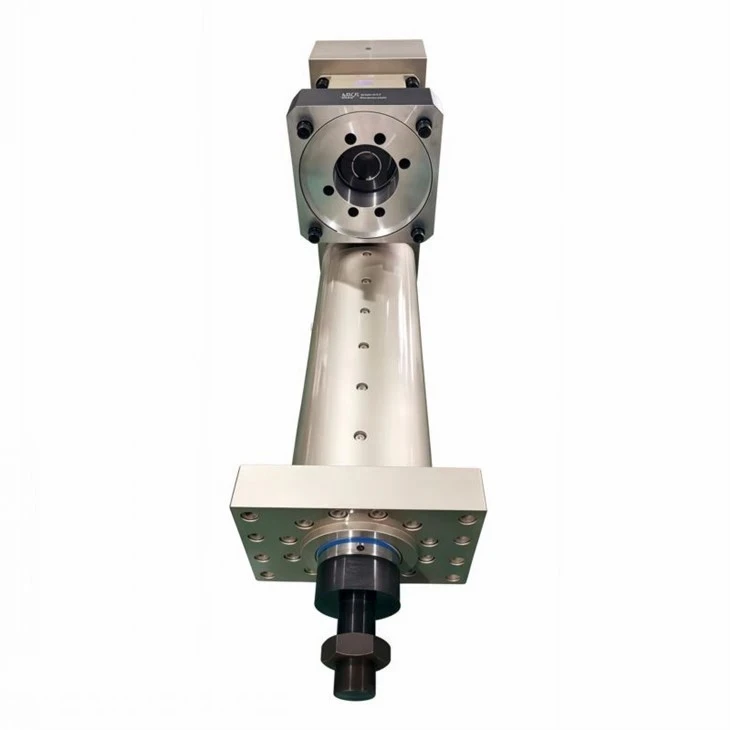

The LIND-WORLD High Torque Hollow Shaft Actuator combines high-density torque performance with a versatile hollow center design. This unique structure allows electrical cables, pneumatic lines, slip rings, lasers, or liquid pipes to pass directly through the center of the driving axis. By eliminating external cable loops, it drastically reduces system installation footprints, streamlines machine aesthetics, and prevents cable fatigue or tangling during continuous high-speed rotation.
Key Features & Industrial Advantages
Large-Diameter Hollow Bore: Enables clean, centralized internal routing for complex wiring and piping, maximizing overall machine safety and reliability.
Exceptional Torque Density: Utilizes premium permanent magnets and optimized gear-motor integration to deliver industry-leading torque within a compact physical envelope.
High Angular & Positioning Accuracy: Engineered with low-backlash harmonic or precision planetary gear systems, paired with high-resolution encoders to achieve sub-millimeter precision.
Robust Load Capacity & Lifetime: Integrated dual-row crossed roller bearings absorb high simultaneous tilting moments, axial thrusts, and radial forces.
Universal Motor Integration: Flexible mounting flange options allow seamless compatibility with major global servo and stepper motor brands, or available as a fully integrated all-in-one system.
Technical Specifications
|
Parameter / Dimension |
Specification Range (Standard & Customizable) |
|
Hollow Shaft Inner Diameter |
20 mm – 120 mm (custom sizes available upon request) |
|
Rated Torque Output |
50 Nm – 1,500 Nm |
|
Peak / Acceleration Torque |
Up to 3,000 Nm (depending on load conditions) |
|
Positioning Accuracy |
≤ 1 arc-min (high-precision option: ≤ 30 arc-sec) |
|
Max Rotation Speed |
100 – 500 RPM (depending on torque configuration) |
|
Backlash / Transmission Play |
Standard: ≤ 1 arc-min / Ultra-precision: ≤ 1 arc-sec |
|
Ingress Protection (IP Rating) |
IP54 / IP65 / IP67 (optional for harsh environments) |
|
Operating Temperature Range |
-20°C to +60°C (extended range available for special applications) |
|
Integrated Feedback System |
Absolute encoder (BiSS-C / EnDat 2.2) / Incremental encoder / Resolver optional |
Advanced Engineering & Selection Considerations
Inertia Matching & Dynamic Response: High torque capacity requires rigorous inertia calculation. Our application engineers provide dynamic mathematical modeling to ensure the actuator perfectly matches your load inertia ratio (ideally <= 5:1 for dynamic stop-and-go applications).
Cable Management & Chafing Prevention: When routing through the hollow center, ensure the cable bend radius complies with >= 10x the cable outer diameter. We offer smooth-bore internal sleeving to eliminate friction during continuous rotation.
Thermal Dissipation Matrix: Heavy-duty applications generate heat. The housing features aircraft-grade hard-anodized aluminum with integrated cooling fins to maximize passive thermal dissipation and prolong encoder lifespan.
Universal Motor Mounting Flange Guide
Our actuators are engineered with an adaptable input interface. Whether your system standardizes on European, Japanese, or American motor brands, we customize the input shaft and mounting flange to match perfectly:
Servo Motors Supported: Siemens (1FT/1FK), Panasonic (Minas A6), Delta (ASDA), Yaskawa (Sigma-7), Mitsubishi (MelServo), and more.
Standard Stepper Integration: NEMA 23, NEMA 34, NEMA 42 interfaces.
Need a turnkey solution? Specify your required brand for a pre-installed integrated motor configuration.
Primary Application Fields
Robotics & Multi-Axis Articulation: Heavy-payload industrial robot joints and collaborative robot (Cobot) articulations.
Semiconductor & Wafer Processing: Precision rotary stages requiring vacuum lines to pass directly through the motion center.
Medical Equipment Mechanics: Advanced imaging arrays (CT/MRI scanners) and robotic-assisted surgical positioning systems.
Automated Rotary Indexing Tables: High-speed, heavy-torque indexing for high-throughput assembly, CNC machining, and packaging lines.
Laser Cutting & Optoelectronic Systems: Allowing optical fibers, protective gases, or water-cooling lines to route coaxially with the laser head.
Quality Assurance, Compliance & Reliability
100% Metrology Testing: Every actuator undergoes dynamic runtime verification using Renishaw laser interferometers to guarantee axial and radial runout stay within +/- 0.01 mm.
Component Traceability & Premium Sourcing: Fully managed under strict ERP protocols. Critical internal components (bearings, seals, magnets) are sourced from world-class suppliers and traceable to raw material batches.
Global Compliance: Manufactured in strict accordance with ISO 9001:2015 quality standards. Fully compliant with CE, RoHS, and REACH directives.
MTBF & Life Cycles: Rated for a Mean Time Between Failures (MTBF) of >= 20,000 hours under nominal working conditions, tested up to 5 million full-load fatigue cycles.
Heavy-Duty Export Packaging & Logistics Safety
Anti-Magnetism Shielding for Air Freight: For absolute safety during international air shipping, we utilize advanced magnetic shielding packaging layers to ensure 100% compliance with IATA magnetic interference regulations.
VCI Anti-Corrosion Vacuum Sealing: Every actuator is wrapped in Volatile Corrosion Inhibitor (VCI) films and vacuum-sealed to prevent moisture, oxidation, and rust during long-duration ocean freight.
ISPM-15 Standard Fumigation-Free Crating: Packed in heavy-duty, reinforced plywood crates that comply fully with international customs inspection standards (ISPM-15)-ensuring smooth, zero-delay clearance at your port of entry.
Step-by-Step R&D Collaboration & OEM/ODM Process
We streamline your custom procurement and engineering cycle through a transparent four-stage process:
Technical Consultation & Feasibility
Submit your payload, speed, and hollow bore constraints. Our motion control team delivers an initial feasibility assessment within 24 hours.
FEA & Dynamic Simulation
We perform Finite Element Analysis (FEA) based on your specific duty cycles to verify stress distribution and safety margins.
3D Model Sign-off
We supply custom 3D STEP files for you to integrate into your master assembly file prior to final manufacturing approval.
Prototype to Mass Production
Flexible MOQ policies support early-stage prototyping, with rapid scaling capabilities for serial production.
Frequently Asked Questions (FAQ)
Q: How does the hollow shaft design prevent cable wear during continuous 360° rotation?
A: Our internal bore features a high-smoothness anodized sleeve to eliminate internal friction points. For continuous multi-turn applications, we highly recommend integrating a dedicated pneumatic or electrical slip ring, which LIND-WORLD can pre-install and test prior to shipment according to your custom pin assignments.
Q: Can your High Torque Actuators handle axial and radial shock loads in aggressive environments like heavy-duty welding or CNC machining?
A: Yes. By employing heavy-duty crossed roller bearings natively integrated into the actuator's structural output flange, the system directly absorbs up to 15,000 N of axial force and extreme tilting moments. This protects the internal precision gear-set from distortion and degradation over years of heavy cycling.
Q: Is the custom motor mounting flange a paid add-on service?
A: No. Tailoring the mechanical input flange and internal shaft coupling to seamlessly match your specified servo or stepper motor brand (such as Siemens, Yaskawa, Panasonic, etc.) is included as a standard engineering service within our B2B manufacturing workflow.
