Core Advantages
Ultra-high torque output, engineered for heavy-duty applications in harsh industrial environments.
Eco-friendly, low-maintenance ideal alternative to traditional hydraulic and pneumatic systems.
Fully customizable dimensions, torque capacities, and control system integration.
Product Overview

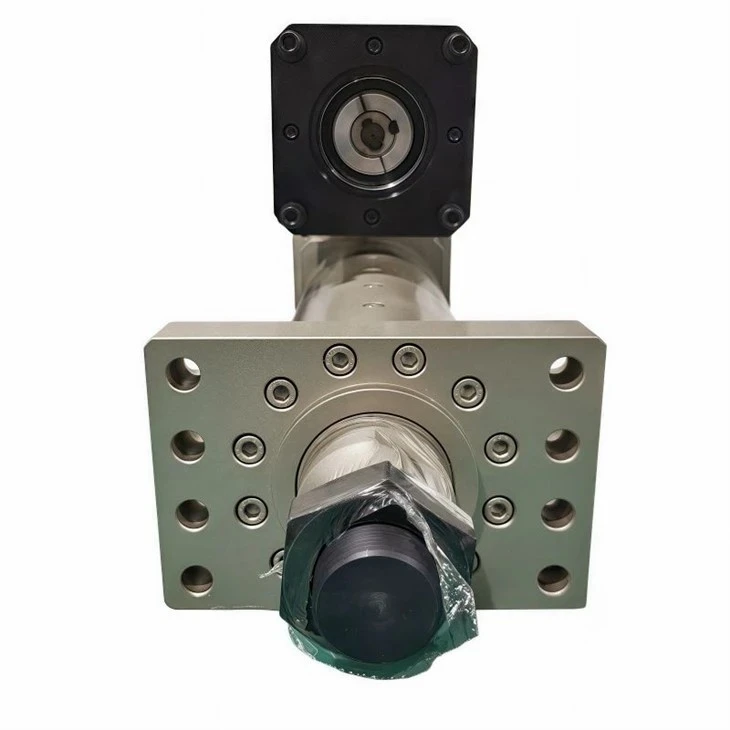

LIND Heavy-Duty Rotary Electric Cylinders perfectly integrate advanced servo drive technology with high-strength mechanical transmission. This series is engineered for heavy industrial scenarios requiring massive torque, high-precision rotational control, and continuous, stable operation.
Compared to traditional hydraulic motors, it completely eliminates the risk of oil leakage while achieving full closed-loop control of speed, position, and torque, significantly boosting production efficiency and reducing operational costs.
Key Features And Technical Advantages
Superior Load and Torque Capacity: Utilizes high-strength alloy steel gears and heavy-duty bearing designs, delivering a rated torque of up to 50,000 Nm to effortlessly handle high-impact loads.
High Precision and Closed-Loop Control: Compatible with mainstream servo motors, achieving a repeatability precision of up to +/- 0.01 Degree and supporting complex motion trajectory control.
Robust and Harsh-Environment Ready: Standard protection rating of IP65 (optional IP67 / IP68) with anti-corrosion surface coating, resistant to high temperatures and heavy dust.
Eco-Friendly and Low Maintenance: Direct conversion of electrical energy to mechanical energy reduces energy consumption by over 40% compared to hydraulics. Zero hydraulic oil changes mean minimal maintenance costs.
TECHNICAL SPECIFICATIONS
|
Parameter |
Specification Range |
|
Rated Torque |
500 Nm – 50,000 Nm (Fully Customizable) |
|
Rotation Angle |
90° / 180° / 360° / Continuous Rotation |
|
Repeatability |
±0.01° to ±0.05° |
|
Input Voltage |
AC 220V / 380V / 400V / 480V (50/60 Hz) |
|
Protection Class |
IP65 / IP67 / IP68 Optional |
|
Operating Temperature |
-20°C to +80°C (Custom Low-Temperature and High-Temperature Versions Available) |
|
Feedback Device |
Absolute Encoder / Resolver |
|
Drive System |
Servo Motor + Precision Gearbox |
Deep Technical Comparison
Features | LIND Rotary Electric Cylinder | Traditional Hydraulic Systems | Traditional Pneumatic Systems
Precision
LIND: Extremely High (+/- 0.01 Degree Full Closed-Loop)
Hydraulic: Low (Affected by oil temperature and internal leakage)
Pneumatic: Extremely Low (Air is highly compressible)
Maintenance Costs
LIND: Almost Zero (Only requires regular lubrication)
Hydraulic: Extremely High (Regular oil changes, seal replacements, leak fixing)
Pneumatic: Medium (Requires handling air line condensation)
Environmental Impact
LIND: Eco-friendly, zero pollution, low noise
Hydraulic: High risk of oil leaks, high noise, pollutes the workplace
Pneumatic: High noise, large energy waste
System Energy Efficiency
LIND: High (Up to 75% - 85%)
Hydraulic: Low (Around 30% - 40%, pump station must run constantly)
Pneumatic: Extremely Low (Around 10% - 15%)
Control System Compatibility And Integration
The drive system of LIND rotary electric cylinders supports major global bus communication protocols, ensuring seamless integration with your existing control architecture:
Supported Protocols: EtherCAT, PROFINET, EtherNet/IP, Modbus TCP, CANopen.
Compatible PLC Brands: Siemens, Rockwell Automation (Allen-Bradley), Beckhoff, Omron, Mitsubishi, and more.
Typical Application Fields
Metallurgy and Steel Industry
Continuous casting machines, tilting tables, heavy-duty valve control.
Port and Marine Machinery
Crane slewing mechanisms, marine hatch cover operations, grab bucket control.
New Energy Equipment
Large-scale solar tracking systems, wind turbine pitch control.
Automated Heavy-Duty Production Lines
Automotive manufacturing turntables, heavy material flipping and handling.
Quality Control And Factory Acceptance Testing (FAT)
Every heavy-duty rotary electric cylinder undergoes strict testing at the LIND intelligent testing center before dispatch. A comprehensive FAT report (hardcopy and digital) is provided with shipping:
Rated and Overload Dynamic Torque Testing: Ensuring continuous power under extreme loads.
High-Precision Backlash and Repeatability Position Testing: Verified by laser interferometers.
IP65 / IP67 Waterproof and Dustproof Simulation Testing.
High-Voltage Electrical Insulation and Dielectric Strength Testing.
Customization Capabilities And Workflow
We don't just supply standard products; we deliver tailor-made engineering solutions.
Requirement Consultation
Share your load capacity, speed, torque, and operating environment with us.
Engineering and Design
Our engineering team provides 3D models (STEP / IGS files) and technical proposals for your confirmation.
Rigorous Testing
Comprehensive load, precision, and aging tests are conducted before delivery, complete with test reports.
Mechanical Dimensional Drawings And Mounting Interfaces
LIND rotary electric cylinders feature standard international mechanical interfaces, with full customization available to match your existing equipment foundation.
Key Dimensions Available for Verification:
- Shaft Diameter and Keyway Specifications
- Flange PCD (Pitch Circle Diameter)
- Overall Envelope Dimensions and Space Requirements
Global Trade Compliance And Logistics
With extensive experience in exporting heavy industrial equipment worldwide, we ensure a seamless customs and logistics process for your shipment:
Suggested HS Code (China): 8501520090 (For your local import tariff and duty verification).
Incoterms Supported: FOB, CIF, CFR, DDP, DAP, etc.
Export Documentation: We provide full documentation support, including Certificate of Origin (CO / Form E / Form F), Fumigation Certificates, Commercial Invoices, and detailed Packing Lists.
Lead Time And Production Transparency
Standard Models: 3-4 weeks (Depending on current workshop schedule).
Customized Solutions: 6-8 weeks (Includes engineering design, technical sign-off, custom machining, and rigorous FAT testing).
Progress Updates: During production, our export team will provide weekly photo and video updates from the factory floor, ensuring full transparency of your project status.
Integrated Status Monitoring And Maintenance
To minimize unscheduled production downtime, LIND rotary electric cylinders support the integration of advanced sensor modules for data-driven maintenance:
Real-Time Temperature and Vibration Tracking: Optional embedded sensors monitor the temperature rise and vibration frequencies of the internal gears and heavy-duty bearings, predicting mechanical wear before failure occurs.
Intelligent Overload Protection: The servo drive system features built-in current and dynamic torque-limiting algorithms, delivering microsecond-level shut-off responses during unexpected jams to protect the mechanical structure from structural damage.
Why Choose Lind?
International Certification: Production strictly follows the ISO9001 system, and products comply with CE and other international standards.
Global Supply Chain Components: Key components (bearings, seals, servo systems) are sourced from world-class brands, ensuring hassle-free global maintenance.
Rapid Response Service: Our export team is online 24/7, and our engineering team provides remote technical support globally.
FAQ
Q: Can LIND heavy-duty rotary electric cylinders directly replace hydraulic rotary actuators?
A: Yes, absolutely. LIND heavy-duty rotary electric cylinders can deliver equivalent or higher torque outputs (up to 50,000 Nm). By custom-matching the mechanical mounting interface (flange, shaft, or keyway) to your existing equipment, they seamlessly replace hydraulic cylinders. This upgrade eliminates oil leak risks, reduces energy costs by over 40%, and provides precise, programmable motion control.
Q: How does the rotary electric cylinder maintain high precision and back-lash control under heavy, high-impact industrial loads?
A: We utilize high-rigidity alloy steel internal gears (precision ground) and oversized, heavy-duty tapered roller bearings to absorb massive axial and radial dynamic shock loads. Combined with a high-resolution absolute encoder on the servo motor, the system maintains a closed-loop repeatability of +/- 0.01 Degree to +/- 0.05 Degree even in harsh, continuous-vibration environments.
Q: Do your drive systems support customized industrial voltage and communication protocols for different global regions?
A: Yes. We support global industrial power supplies, including AC 220V, 380V, 400V, and 480V at 50/60Hz. For seamless integration into your existing PLC architecture, our drive systems are fully compatible with major industrial bus protocols such as EtherCAT, PROFINET, EtherNet/IP, Modbus TCP, and CANopen.
Q: What is your standard lead time for customized heavy-duty rotary cylinders, and how do you ensure transparency?
A: Standard models usually take 3-4 weeks. For fully customized engineering solutions (including 3D design sign-off, specialized machining, and FAT testing), the lead time is typically 6-8 weeks. To ensure full transparency, our export team provides weekly progress updates, including actual photos and video clips from our factory floor.
Q: Can you provide 3D CAD models (STEP / IGS files) for mechanical design verification before placing an order?
A: Yes. We welcome engineering consultations. Once you share your basic application requirements (torque, speed, rotation angle, and space constraints), our engineering team will generate and provide the 3D CAD models (.STEP or .IGS) so you can integrate them into your assembly drawings for fitment verification.
