Product Overview & Key Advantages

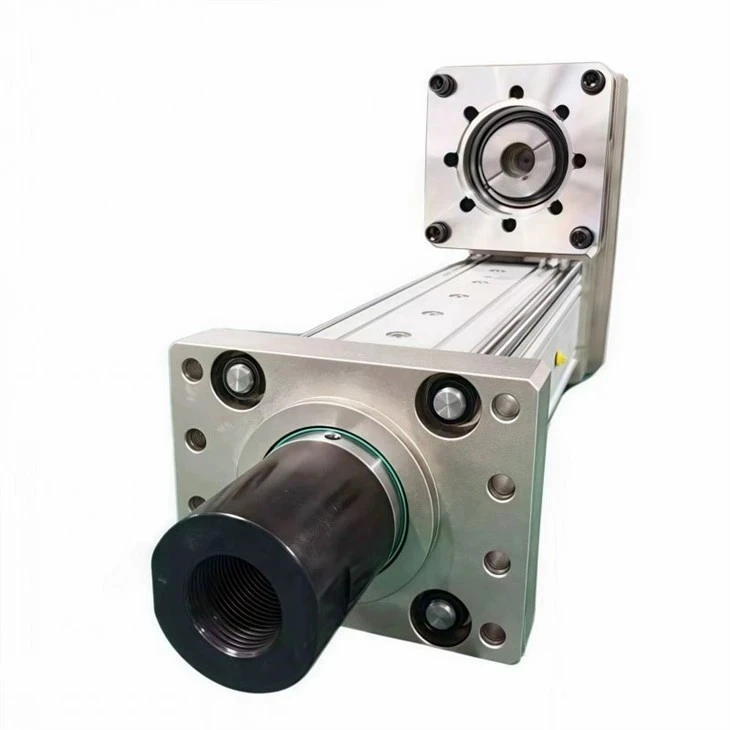

Our High-Precision Rotary Electric Cylinders integrate advanced servo motor technology with premium precision rotary drive mechanisms. Designed as a superior, energy-efficient alternative to traditional pneumatic and hydraulic rotary actuators, they offer fully programmable control, higher load efficiency, and maintenance-free operation under harsh industrial conditions.
Why Global Engineers Trust LIND?
High Precision & Near-Zero Backlash: Engineered with premium angular contact bearings and precision-ground micro-pitch gears, delivering repeatable positioning accuracy of up to ±0.01° and ultra-low backlash of ≤1 arcmin.
Compact & Robust Integration: Seamlessly integrates the motor, high-resolution encoder, and heavy-duty rotary table, significantly saving up to 40% of equipment installation space.
Premium Material & Durability: CNC-machined from high-strength 6061-T6 aviation-grade aluminum alloy with a hard-anodized finish. Equipped with premium Viton seals to achieve an IP65/IP67 rating.
Flexible Customization (OEM/ODM): Tailored motor flanges, hollow-shaft designs, custom rotation angles, and multi-turn absolute controls to fit your exact specifications.
Technical Specifications
|
Parameter |
Specification Range |
|
Input Voltage |
DC 24V / 48V, AC 220V / 380V |
|
Max Torque Range |
5 Nm - 150 Nm (Customizable up to 300 Nm) |
|
Rotary Angle |
0° - 360° Continuous Rotation (Infinite) |
|
Repetitive Positioning Accuracy |
±0.005∘ to ±0.02∘ |
|
Max Rotational Speed |
60 RPM - 300 RPM |
|
Backlash |
≤1 arcmin (Arcminute) |
|
Max Axial Load Capacity |
Up to 5,000 N |
|
Max Radial Load Capacity |
Up to 3,500 N |
|
Feedback System |
17-bit / 23-bit Absolute Encoder, Incremental Encoder |
|
Supported Protocols |
EtherCAT, PROFINET, EtherNet/IP, Modbus-RTU, CANopen |
Key Applications
Our rotary cylinders are widely integrated into multi-axis automation lines requiring fast, precise, and synchronized angular positioning:
Lithium-ion Battery Manufacturing
High-speed cell turning, sorting, and precision indexing.
Semiconductor & Electronics
Wafer handling, PCB soldering flip, and high-speed pick-and-place systems.
Automotive Assembly
Robotic arm joint components, automated parts positioning, and heavy welding fixtures.
Medical & Pharmaceutical
Automated laboratory pipetting, liquid filling, and sterile packaging lines.
Quality Assurance & Global Services 100% Reliability from Our Factory to Your Facility
Rigorous Testing: Every single unit undergoes a 48-hour continuous running-in test, tracking torque curve, precision deviation, and temperature rise.
International Standards: Fully certified by CE, RoHS, and ISO9001:2015, meeting strict European and American industrial import regulations.
Export-Ready Packaging: Packed in heavy-duty, fumigation-free wooden cases with shock-absorbing EPE foam and vacuum anti-rust lining for safe ocean/air transit.
Global Technical Support: 12-month standard warranty. We provide GSDML/ESI configuration files and direct engineering video consultations for trouble-free commissioning.
FAQ
Q: Can your rotary electric cylinders directly replace our existing pneumatic rotary actuators?
A: Yes. We design custom mechanical transition plates and standard motor adapters. This allows you to bolt our electric cylinders directly onto your existing frames without modifying your main machine structure, providing a seamless upgrade to digital precision.
Q: How do you handle vertical mounting or emergency power-off situations?
A: For applications with vertical loads or unbalanced gravity, we highly recommend selecting our models with a Fail-Safe Electromagnetic Brake (Code: B). It instantly locks the cylinder position within milliseconds during an emergency stop or unexpected power loss to prevent equipment damage.
Q: What is your standard production lead time for bulk B2B orders?
A: Sample or small batch orders (1-5 units) typically ship within 7-10 working days. Standard bulk orders take 3 weeks. For heavy customization (e.g., specific hollow-shaft diameters or IP67 special seals), the lead time is around 4 weeks.
