introduction

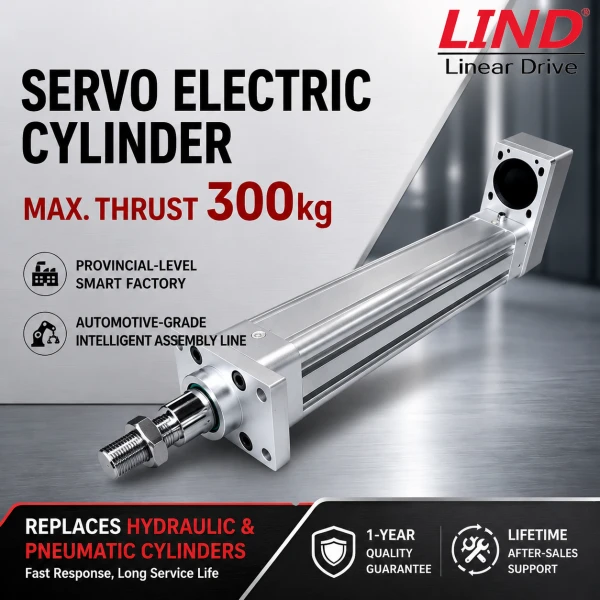

The Electric Piston Actuator is a high-precision linear motion device designed for light-load applications. It provides reliable, energy-efficient performance in automation systems, particularly in industries requiring precise pushing, lifting, or positioning tasks.
|
Motor Power(W) |
400W |
750W |
|||
|
Rated torque N. m |
1.27 |
2.4 |
|||
|
Driving mode |
Ball screw C7 conversion/ball screw C5 grinding (default C7) |
||||
|
Repeat positioning accuracy (mm) |
±0.02/±0.01 |
||||
|
Screw Lead (mm) |
5 |
10 |
5 |
10 |
|
|
Max speed (mm/sec) |
250 (1: 1) 83 (3: 1) |
500 (1: 1), 167 (3: 1) 125 (4: 1), 100 (5: 1) 83 (6: 1) |
250 (1: 1) |
500 (1: 1) 167 (3: 1) |
|
|
Rated thrust (N) |
1360 (1: 1) 4080 (3: 1) |
680 (1: 1), 2040 (3: 1) 2720 (4: 1), 3400 (5: 1) 4080 (6: 1) |
2562 (1: 1) |
1281 (1: 1) 3843 (3: 1) |
|
|
Effective stroke (mm) |
10-1000 |
||||
|
Sensor |
Electronic magnetic switch*3 |
||||
|
Motor Power (W) |
1000W (3000rpm) |
1000W (2000rpm) |
1500W (3000rpm) |
||
|
Rated torque N. m |
3.18 |
4.77 |
4.77 |
||
|
Driving mode |
Ball screw C7 conversion/ball screw C5 grinding (default C7) |
||||
|
Repeat positioning accuracy (mm) |
±0.02/±0.01 |
||||
|
Screw Lead (mm) |
5 |
10 |
10 |
10 |
|
|
Max speed (mm/sec) |
250 (1: 1) |
500 (1: 1) |
333 (1: 1) |
500 (1: 1) |
|
|
Rated thrust (N) |
3395 (1: 1) |
1696 (1: 1) |
2546 (1: 1) |
2546 (1: 1) |
|
|
Effective stroke (mm) |
10-1000 |
||||
|
Sensor |
Electronic magnetic switch*3 |
||||
features
Compact Design
A 63mm standard bore diameter with a side-mounted motor and cylinder reduces machine length by 30% to 50%, ideal for space-limited applications.
High Precision
Equipped with C7/C5 grade ball screws and servo/stepper closed-loop control, the actuator ensures high precision with a repeatability of ±0.01mm.
Strong & Stable Thrust
With a rated thrust of up to 1000kgf (10kN), the actuator can handle light to medium loads. Its high-strength alloy body and guiding structure ensure stable operation and strong resistance to eccentric loads.
Energy Efficieny
With ≥90% transmission efficiency, the actuator outperforms pneumatic and hydraulic systems in energy use.
Low Noise
Runs quietly with a low-friction design, minimizing operational noise.
Long Lifespan
Precision pre-tightening assembly ensures that the components are in optimal alignment from the start, preventing uneven wear over time and extending the lifespan of the actuator.
applications
- 3C/Electronics Manufacturing: Precision dispensing, component insertion, UVW alignment platforms, screen pressing, and inspection fixtures.
- Automated Production Lines: Small robotic arms, positioning and pushing, workpiece lifting, precision indexing, and fixture driving.
- Medical/Laboratory: Rehabilitation equipment, test benches, precision displacement platforms, and driving systems for sterile environments.
- Packaging/Food: Sorting and pushing, sealing and pressing, filling and positioning, and oil-free clean environments.
- Non-standard Equipment: Small presses in confined spaces, testing machines, simulation benches, and web guiding systems.
FAQ
Q1: Can the Electric Piston Actuator replace traditional hydraulic or pneumatic cylinders?
A1: Yes, it is an energy-efficient and environmentally friendly alternative to hydraulic and pneumatic cylinders, offering lower maintenance and higher precision.
Q2: Is the Electric Piston Actuator customizable?
A2: Yes, it can be tailored to meet specific customer requirements, such as custom stroke lengths, speed settings, and mounting options.
Q3: What is the warranty period for your electric cylinders?
A3: Our electric cylinders come with a one-year warranty, covering defects caused by materials and manufacturing processes. The specific warranty period may vary depending on company policies.
Q4: What technical support do you offer for your electric cylinders?
A4: We provide prompt technical support via phone, email, or video conference. For special cases, on-site technical services can be arranged at the customer's expense. Additionally, we offer detailed manuals and 3D model files for easy access and use.
