Product Overview

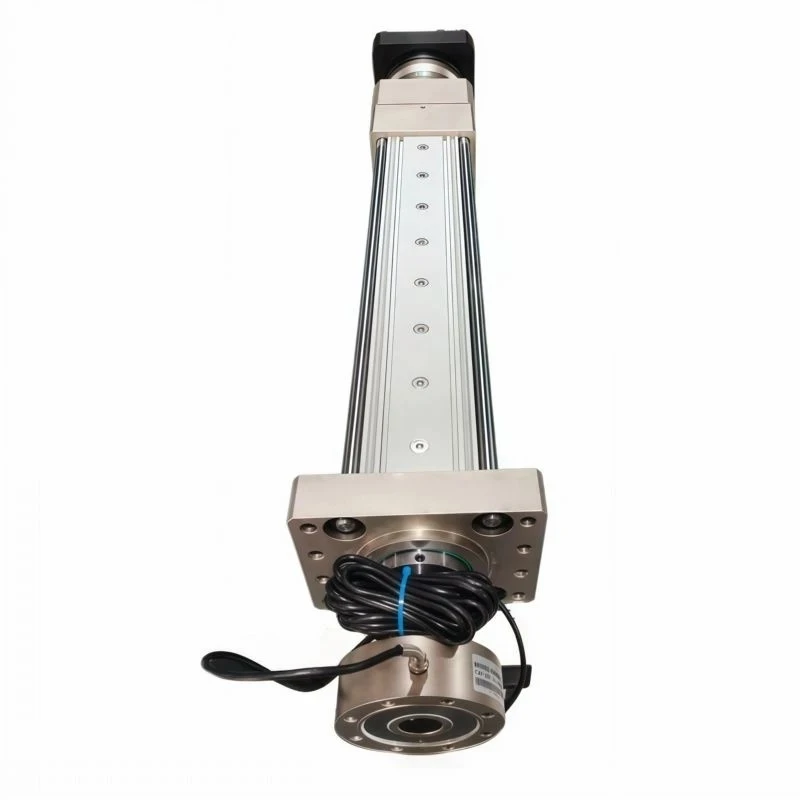

Our High-Precision Electric Linear Actuators (Electric Servo Cylinders) are engineered to meet the rigid demands of modern industrial automation and precision motion control. By combining advanced ball screw or planetary roller screw technology with high-strength mechanical housings, these actuators deliver programmable, highly repeatable linear force.
They serve as the ultimate clean, energy-efficient, and precisely controllable alternative to traditional, high-maintenance hydraulic and pneumatic cylinders.
Why Global OEMs & Systems Integrators Choose Our Actuators
Premium Raw Materials: Machined with high-grade alloy steel and aviation-grade aluminum to ensure minimal thermal deformation and maximum structural rigidity under peak loads.
Advanced Internal Transmission: Equipped with top-tier, hardened ball screws (C5/C3 accuracy grades) or heavy-duty planetary roller screws, achieving up to 90% energy transmission efficiency and an extended operating lifespan.
Low Maintenance & Eco-Friendly: Zero risk of oil leaks, minimal operating noise, and up to a 70% reduction in energy consumption compared to fluid-power alternatives.
Technical Specifications
|
Parameter |
Specification Range (Customizable Options) |
|
Drive Type |
Precision Ball Screw / Planetary Roller Screw |
|
Rated Thrust |
0.5 kN - 500 kN |
|
Stroke Length |
50 mm - 3000 mm (Custom strokes available) |
|
Max Linear Speed |
100 mm/s - 2000 mm/s |
|
Repeatability |
±0.01 mm to ±0.02 mm |
|
Input Voltage |
24V/48V DC or 220V/380V AC |
|
IP Protection Rating |
IP65 (Standard) / IP67 (Optional for washdown/dusty conditions) |
|
Operating Temperature |
-20°C to +60°C (Extreme climate modifications available) |
|
Motor Mounting Configuration |
Inline (Direct-drive) / Parallel (Foldback via belt/gearbox) |
Engineered Internal Architecture
Precision Screw Assembly: High-efficiency C5/C3 grade ball or roller screws ensure smooth torque-to-thrust conversion with near-zero backlash.
Integrated Anti-Rotation Mechanism: Internal structural guides prevent the internal piston rod from rotating during operation, eliminating the need for external guiding tracks.
Heavy-Duty Piston Rod: Hard chrome-plated alloy steel or high-grade stainless steel options provide superior anti-wear and corrosion-resistant properties.
Smart Feedback & Safety Sensors: Pre-engineered slots for integrated limit switches, home position sensors, and external linear encoders for absolute position closed-loop control safety.
Global Industry Applications
Our high-precision electric cylinders are trusted worldwide across critical, high-uptime sectors:
Automotive Manufacturing: Multi-axis precision pressing, servo riveting, spot welding robots, and automated powertrain assembly lines.
Simulators & Entertainment: 3-DOF and 6-DOF (Degrees of Freedom) motion platforms, flight simulators, racing simulators, and interactive theme park rides.
Testing & Laboratory Equipment: High-frequency fatigue testing machines, tensile testing systems, and laboratory automation.
Material Handling & Logistics: AGV lifting mechanisms, automated sorting gates, precision multi-axis gantry systems, and heavy palletizers.
Food & Pharmaceutical Processing: Specialized stainless-steel variants designed for sterile, cleanroom, and intensive washdown environments.
OEM/ODM Capabilities
We offer comprehensive customization, including tailored mounting interfaces (ISO standard brackets, foot mounts, trunnions), custom stroke profiles, extreme temperature packages, and complete multi-axis system synchronized control integration.
International Quality Assurance
100% Factory Performance Tested: Every individual electric cylinder undergoes a rigorous, fully automated factory runoff testing sequence verifying load capacity, speed, accuracy, and temperature profiles before packaging. Full testing data reports are provided with shipment.
Global Certifications: Fully certified under CE, RoHS, and ISO9001 quality management protocols, ensuring strict compliance with European and North American industrial standards.
Overseas Warranty: Backed by a comprehensive 12-month worry-free structural warranty and lifetime technical engineering support.
Frequently Asked Questions (FAQ)
Q: Can your electric cylinders directly replace our existing hydraulic or pneumatic cylinders?
A: Yes, absolutely. Electric linear actuators are ideal replacements for hydraulic and pneumatic systems. They offer drastically higher precision, eliminate oil leakage environmental hazards, cut energy bills by up to 70%, and free you from maintaining complex air compressors or hydraulic pump stations. We can customize the mounting dimensions (such as ISO standard clevis, trunnion, or flange mounts) to seamlessly match your existing physical footprint.
Q: What brands of servo or stepper motors are compatible with your electric actuators?
A: Our cylinders feature a universal, modular motor adapter interface. They are fully compatible with major global motor brands, including Siemens, Panasonic, Mitsubishi, Yaskawa, Delta, Schneider, and Rockwell Allen-Bradley. You can ship your preferred motors to our facility for assembly, send us your motor's technical drawing for a custom-machined flange, or purchase a turnkey cylinder-plus-motor bundle directly from us.
Q: How do I choose between a Ball Screw and a Planetary Roller Screw drive?
A: The choice depends heavily on your application's force concentration and expected cycle life:
Ball Screw: Best suited for high-speed, high-precision, and standard-to-high load applications. This is the most common, cost-effective solution for standard automation.
Planetary Roller Screw: Specifically engineered for ultra-heavy-duty industrial applications requiring extreme thrust. Because the load is distributed across multiple threaded planetary rollers, they offer superior impact resistance and a significantly longer service life under punishing conditions.
Q: What is your standard lead time for international orders?
A: For standard catalog configurations, our typical production lead time is 10-15 working days. For highly customized engineering projects (specialized strokes, heavy thrust adjustments, specific materials, or upgraded environmental sealing), the lead time generally ranges from 20-30 working days, depending entirely on the engineering complexity.
Q: Can you provide 3D CAD models during the design phase?
A: Yes. We understand that design and mechanical engineers need precise component spacing models early in the development cycle. Once we confirm your preliminary technical requirements, our engineering desk will generate and send you the 3D CAD files in industry-standard formats (such as .STEP or .IGS) to drop directly into your master design assemblies.
Q: How do you protect the products from damage during international transit?
A: We utilize heavy-duty, export-standard industrial packaging. All precision actuators are rust-protected, vacuum-sealed, and securely braced inside rugged, ISPM-15 compliant shock-absorbing wooden crates or heavily reinforced heavy-duty cartons. This minimizes any risk of structural or cosmetic damage during long-distance maritime freight or air transit.
