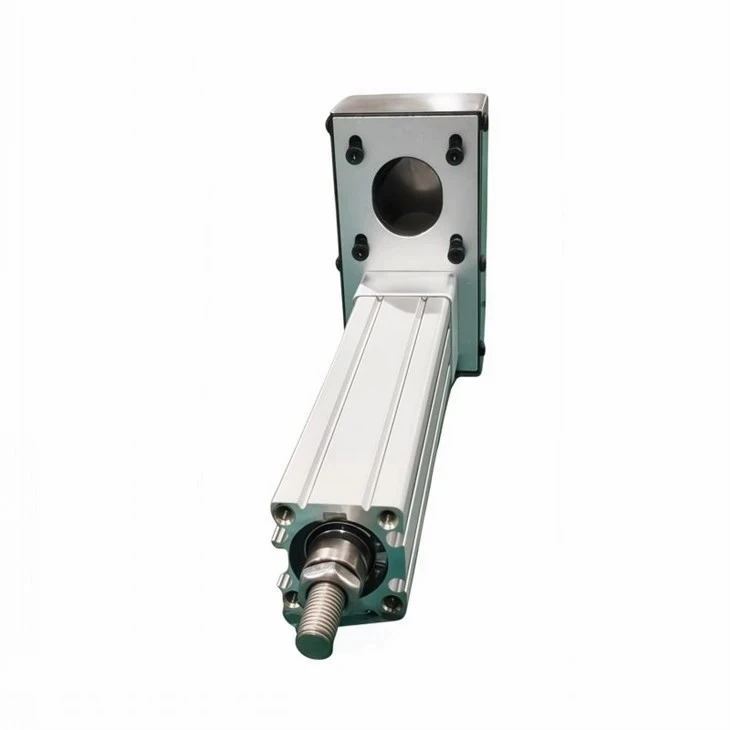

High-Precision Miniature Electric Linear Actuator Industrial Micro Servo Cylinder
Ultra-Compact & Space-Saving Design
Engineered for high-density space layouts. The slim, micro-profile integrates seamlessly into complex medical devices, aerospace linkages, and micro-automation cells without compromising dynamic thrust.
±0.02 mm Repetitive Positioning Accuracy
Powered by premium hardened ball screws or ground lead screws paired with optional high-resolution magnetic or optical encoders. Delivers the sub-millimeter precision required for critical, multi-axis positioning tasks.
Industrial-Grade Ruggedness & IP Rating
Features a heavy-duty anodized aluminum alloy or stainless steel outer housing with sealing options up to IP65/IP66. Exceptionally resistant to dust, water splashes, and harsh industrial environments.
Rapid OEM/ODM Customization Capabilities
Tailored engineering solutions for specific stroke lengths (precise to 1 mm increments), custom gear-speed-load ratios, specialized mounting clevises, and tailored industrial feedback signals to fit your exact blueprints.
Technical Specifications Table
|
Technical Parameter |
Specification Range (Customizable) |
|
Input Voltage |
12V / 24V / 36V / 48V DC, or AC Servo Drive |
|
Stroke Length |
10 mm – 500 mm (Custom increments of 1 mm available) |
|
Max. Dynamic Load (Thrust/Pull) |
Up to 2000 N (Depending on speed and gear ratio configuration) |
|
Max. Static Load (Self-Locking) |
Up to 4000 N (Ensures absolute structural safety at standstill) |
|
Max. Linear Speed |
5 mm/s – 100 mm/s (Load dependent) |
|
Screw Mechanism Type |
Hardened Ball Screw / Premium Precision Lead Screw |
|
Motor Configurations |
Brushed DC Motor / Brushless DC Motor / Stepper Motor / Servo Motor |
|
Repeatability |
±0.02 mm (Ball Screw version) / ±0.05 mm (Lead Screw version) |
|
Backlash Control |
<0.03 mm throughout operational lifespan |
|
Duty Cycle |
10% - 25% (Continuous operation 100% duty cycle options available) |
|
IP Protection Rating |
Standard IP54 (Upgradable to IP65 / IP66 washdown protection) |
|
Operating Temperature |
-20°C to +65°C (Extreme cold/heat grease down to -40°C or up to +85°C optional) |
|
Feedback Signal Options |
Integrated Hall Effect Sensor, Potentiometer, Optical Encoder |
Performance Dynamics & Control Characteristics
Speed vs. Load Interrelation
Maximum velocity is achieved at zero load conditions. As the working dynamic load increases, the linear speed decreases predictably. Please refer to our selection curve charts or consult our engineering desk for precise velocity calculations under your specific workload.
Current Consumption & Protection
The rated current applies to standard, unimpeded operations. During peak stall load or mechanical boundary impacts, the current can surge up to 3 to 4 times the rated current. Ensure your control system's fuses, relays, and power supplies are configured to handle these peak inrush currents safely.
Power Supply Selection Guide
We recommend choosing a switching power supply whose output current rating is at least 1.5 to 2 times the actuator's maximum rated current to ensure operational stability during high-load start-ups.
Control System Compatibility
Fully compatible with standard Industrial PLCs (e.g., Siemens, Rockwell, Mitsubishi), Arduino, Raspberry Pi, and dedicated industrial motion control cards. Supports 0-10V, 4-20mA, PWM, and Modbus RTU communication protocols upon request.
Typical Applications & Industry-Specific Compliance
Advanced Medical Technology
Micro-positioning for surgical robotics, automated laboratory liquid handling equipment, imaging scanners, and ophthalmic diagnostic chairs.
Smart Fluid & Valve Controls
Miniaturized ball valve actuators and proportional fluid dosing control systems in chemical, pharmaceutical, and water treatment applications.
Aerospace & UAV Systems
Drone flap and wing-surface adjustments, camera gimbal stabilizing linkages, and high-fidelity cockpit micro-simulation setups.
Industrial Automation & AGV/AMR
Micro-grippers, automated conveyor sorting gates, locking mechanisms for autonomous mobile robots, and electronic valve controls.
Material & Compliance Standards
Medical Equipment Ready
Available with biocompatible, non-toxic lubricants and medical-grade plastics that comply with ISO 10993 or USP Class VI standards upon request.
Food & Beverage Automation
Optional upgraded Stainless Steel 304/316 moving shafts paired with NSF H1 food-grade grease for washdown processing environments.
RoHS & REACH Certified
100% lead-free and hazardous-substance-free construction, ensuring smooth compliance and deployment across strictly regulated European and North American industrial zones.
Manufacturing Excellence & Quality Control
100% Automated Performance Testing Every single miniature electric actuator undergoes rigorous automated testing before being cleared for packaging. Our standard inspection checklist covers rated load testing, precise stroke limit checks, current consumption verification, and speed stability analysis.
State-of-the-Art Diagnostic Equipment Our factory is fully equipped with advanced Coordinate Measuring Machines (CMM), automated salt spray testing chambers for corrosion resistance, and precision anechoic chambers. Ambient noise levels are strictly kept under 50 dB (A-weighted at 30 cm) to pass strict medical and office automation acoustics criteria.
Global Quality Certifications LIND WORLD is an ISO9001:2015 certified manufacturer. Our micro linear actuator product lines are fully compliant and certified with CE, RoHS, and FCC, ensuring friction-free customs clearance and hassle-free market entry globally.
Commercial, Logistics & Support Commitments
Flexible MOQ for Engineering We actively back innovation and R&D. We offer a low MOQ (1–5 pcs) for custom prototype sampling and early-stage engineering evaluation.
Optimized Industrial Lead Times Standard prototype samples are ready for dispatch within 3–7 days. Mass production batch orders are fulfilled within 15–25 days, varying with customization complexity.
Export-Grade Heavy Duty Packaging Shipped in reinforced double-layer corrugated cartons lined with a custom-engineered, high-density pearl foam matrix to eliminate all potential transit vibration and damage risks.
Comprehensive 18-Month Warranty We stand firmly behind our build quality by offering a reliable 18-month warranty alongside lifetime engineering and technical application support for all industrial enterprise clients.
FAQ
Q: Can we customize specialized wiring connectors or robot-grade cables?
A: Yes. We can integrate specific wire lengths, high-flexibility robot cables, and specify top-tier connector brands such as Molex, JST, Amphenol, or Deutsch based on your interface specifications.
Q: Do you support Incoterms like DDP or CIF besides traditional FOB terms?
A: Absolutely. We manage global logistics and support FOB, CIF, EXW, and DDP (including customs clearance and local duties paid) for most regions in North America, Europe, and Southeast Asia.
Q: How does your team handle technical support and trouble-shooting post-purchase?
A: We provide a 24-hour response guarantee. Our English-fluent motion control application engineers can coordinate video consultations to assist with mechanical installation, wiring schematics, or PLC programming queries.
