Product Overview

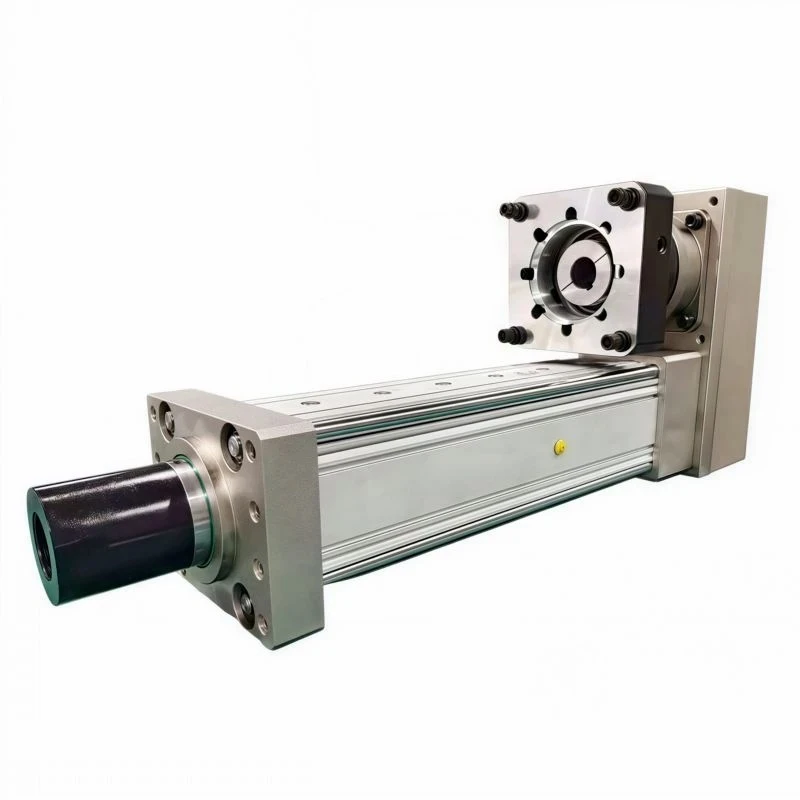

Our Intelligent Rotary Electric Cylinder represents the next generation of precision rotary motion control. Engineered as a premium, high-performance alternative to traditional pneumatic rotary actuators and complex mechanical indexing tables, this smart servo cylinder completely eliminates the typical industry headaches of air leakage, high energy consumption, and difficult multi-point positioning.
By combining programmable multi-turn rotary motion with dynamic real-time torque feedback, it offers global OEMs and system integrators an energy-efficient, maintenance-free, and highly flexible solution to future-proof their automated production lines.
Standard Technical Specifications
|
Parameter |
Specification & Range (Metric Units) |
|
Input Voltage |
24V / 48V DC or 220V / 380V AC |
|
Rated Output Torque |
2 Nm - 150 Nm (Fully customizable upon request) |
|
Peak Torque |
3 times of rated torque |
|
Max. Rotational Speed |
Up to 300 RPM |
|
Positioning Accuracy |
±0.01° (±36 arcsec) |
|
Repeatability |
±0.005° (±18 arcsec) |
|
Backlash Options |
Standard Grade ≤ 3 arcmin / Precision Grade ≤ 1 arcmin |
|
Feedback System |
17-bit / 23-bit Magnetic or Optical Absolute Encoder |
|
Communication Protocols |
EtherCAT, PROFINET, CANopen, Modbus RTU / TCP |
|
Protection Class |
IP65 (Standard) / IP67 (Optional) |
Key Benefits
All-in-One Integration
Seamlessly integrates a high-performance servo motor, high-resolution absolute encoder, and zero-backlash rotary drive mechanism into a single, robust housing.
Heavy-Duty & Compact
Engineered with a high power-density design, making it the ideal choice for space-constrained industrial automation environments.
Sub-Arcmin Precision
Delivers up to ±0.01° rotational positioning accuracy with fully programmable torque limits and velocity control.
Industrial IoT Ready
Supports multi-protocol bus communication (EtherCAT, PROFINET, CANopen) for seamless smart factory and PLC integration.
Technical Deep-Dive & Key Features
Advanced Programmable Closed-Loop Control
Supports real-time programmable control of position, speed, and torque. Utilizing a built-in 23-bit absolute encoder, the system achieves full closed-loop control. This ensures zero position loss during sudden power variations and prevents overshoot even under dynamic load fluctuations.
Premium Zero-Backlash Gear Integration
Equipped with precision harmonic or planetary reducers, maintaining a standard backlash of ≤ 1 arcmin (precision grade) or ≤ 3 arcmin (standard grade). This guarantees exceptional bidirectional repeatability, making it perfect for high-speed, high-frequency indexing and indexing table upgrades.
Industrial-Grade Protection & Reliability
Encased in a rugged, anodized aluminum alloy shell with stainless steel output shafts. The standard IP65-rated housing (IP67 optional) safeguards the internal mechanics from dust, moisture, and cutting fluids, ensuring 24/7 continuous operation in harsh factory environments.
Global Benchmark Applications
3C Electronics & Automated Assembly: Used for precise component rotation, multi-angle sorting, and precision screw driving or press-fitting on compact smartphone and PCB assembly lines.
New Energy & Lithium Battery Manufacturing: Applied in battery cell winding machines, laminating mechanical arms, and high-speed valve rotation control where cleanliness and high dynamics are mandatory.
Semiconductor & Wafer Handling: Integrates perfectly into cleanroom robot joints and wafer orientation adjustment modules due to its low-particle emission design and strict material selection.
Smart Food & Medical Packaging: High-speed, high-repetition rotary capping, precision liquid dispensing pump rotation, and pharmaceutical bottle indexing.
Quality Assurance & Supply Chain Strength
100% Rigorous Factory Testing
Every intelligent rotary cylinder undergoes a mandatory 48-hour continuous burn-in aging test. We utilize precision laser interferometers to calibrate positioning accuracy and dynamic torque sensors to verify output torque curves before shipment. A full QA test report is provided with every order.
Traceable Quality & Global Certifications
Our manufacturing facility operates strictly under the ISO9001:2015 quality management system. All products are fully compliant with international standard marks, including CE and RoHS, ensuring smooth customs clearance and complete legal compliance in Europe and North America.
FAQ
Q: Do you provide matching servo drives and cables?
A: Yes. We can provide a complete motion control kit, including the intelligent rotary cylinder, a fully matched digital servo drive, and 3-meter/5-meter standard high-flex shielded cables (custom lengths and robotic-grade bending cables available).
Q: Can we customize the shaft type, dimensions, or mounting flanges?
A: Absolutely. Over 40% of our business comes from customized OEM solutions. We can customize solid shafts, hollow shafts, keyways, specific dimensions, and special motor-parallel configurations based on your 2D/3D blueprints or application requirements.
Q: What is the lead time for standard and custom orders?
A: Standard models can be shipped within 7-10 working days. For custom prototypes or bulk OEM orders, the typical lead time ranges from 15 to 25 working days, depending on the modification complexity.
Q: How do you provide technical support to overseas buyers?
A: We offer 12-hour rapid technical responses via email and video consultations. Our application engineers can assist your design team with product selection, 3D CAD model integration, protocol configuration, and remote troubleshooting during commissioning.
